High Precision Oil Filled Differential Pressure Transducer Differential Pressure Transmitter
Product Details
| Model NO.: | BP93420DII | Storage Temp.: | -40~100℃ |
|---|---|---|---|
| Pressure Type: | Differential Pressure | Operating Temp.: | -30~80℃ |
| Long-Term Stability: | ±0.2%F.S/Year(>200kpa) | Transport Package: | Standard Export Packing With Carton |
| Origin: | China | HS Code: | 9026201090 |
| Supply Ability: | 20000PCS/Year | Measuring Medium: | Gas Or Liquid |
| Accuracy Grade: | 0.25%,0.5% | IP Rating: | IP65 |
| Highlight |
High Precision Differential Pressure Transmitter,Oil Filled Differential Pressure Transmitter,Oil Filled Differential Pressure Transducer |
||
Product Description

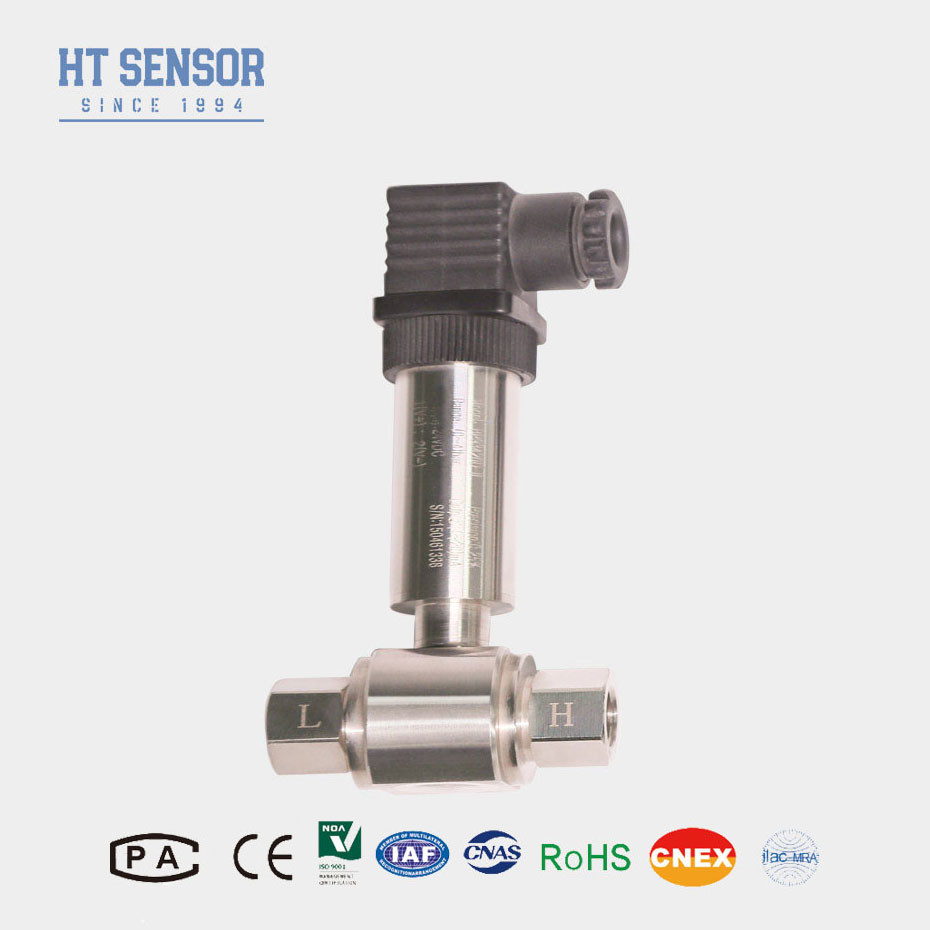

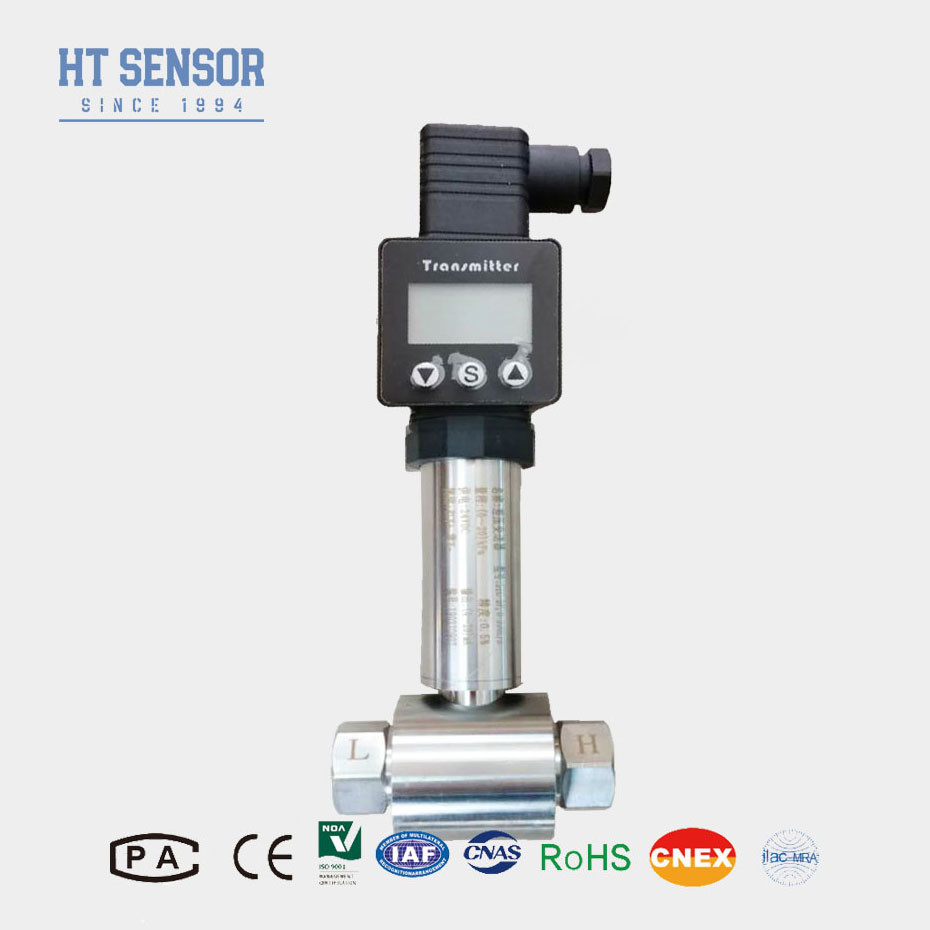

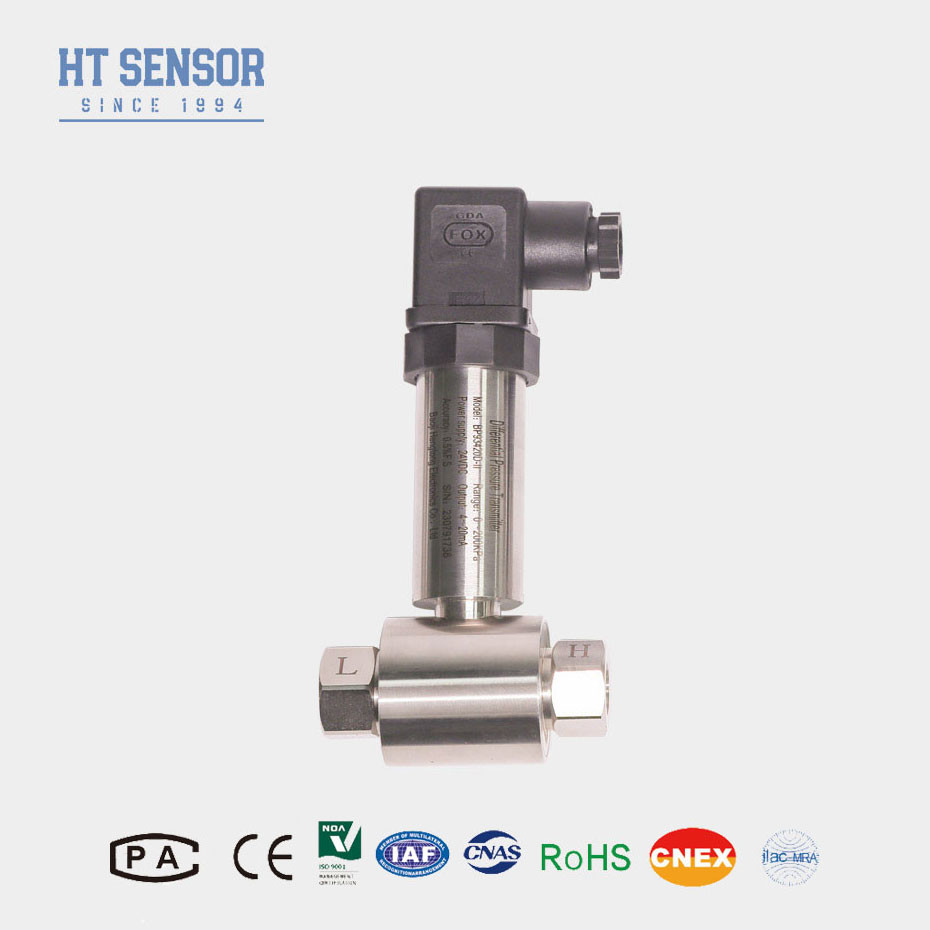

BP93420DII Differential Pressure Transmitter
Introduction of differential pressure transmitter :
BP93420DII High precision oil filled differential pressure transmitter uses a piezoresistive diffused silicon sensor. It uses multi-point calibration of the sensor's temperature, linearity, hysteresis and repeatability through digital compensation technology.
Digital compensation enhances the performance and reliability of pressure transmitters by leveraging advanced algorithms and digital processing techniques. This results in highly accurate, stable, and customizable pressure measurement solutions for a wide range of applications.
The sensor consists of a silicon diaphragm with piezoresistive elements diffused into it, forming a Wheatstone bridge circuit. When differential pressure is applied across the diaphragm, it causes the diaphragm to deform. This deformation changes the resistance of the piezoresistive elements, unbalancing the Wheatstone bridge. The resulting voltage output is proportional to the differential pressure applied.
Product Features:
1. High precision
2. Wide measuring range
3. Strong corrosion resistance
4. Strong anti-interference ability
5. High temperature adaptability
6. Easy maintenance
7. Multiple output signal options
8. High reliability
Applications:
1. Measuring differential pressures in environmental control systems.
2. Monitoring differential pressures in medical equipment like ventilators.
3. Pressure measurement for pipelines and furnace chambers
| Performance Parameters | |
| Measurement Range | 0-10KPa...~2MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -30ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0.5~4.5V | 5VDC |
| Ordering tips |
2. To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
3. During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
4. For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| DII | Differential Pressure Transmitter | |||||||
| Measurement Range | 0-10KPa...~2MPa | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 Male | |||||||
| J2 | G1/2 Male | |||||||
| J3 | G1/4 Male | |||||||
| J4 | 1/2 NPT Male | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | Other | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
