Name: Advanced High Temperature Flush Diaphragm Pressure Sensor For Liquid Pressure Measurement BP93420-IIIQ
Brand: Baoji Hengtong Electronics Co., LTD
SKU: BP93420-IIIQ
Price: 21.00 USD
Availability: InStock

Detail Information

Model NO.:	BP93420-IIIQ	Power Supply:	12-36VDC
Ouptut:	4-20mA With LCD Or LED Display	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Range:	0-35kpa~3.5Mpa	Structure Type:	Flush Diaphragm Pressure Sensor
Measuring Medium:	Liquid,gas ,Beverage Glue And So On	Accuracy Grade:	0.5%
IP Rating:	IP65	Customization:	Available OEM And ODM
Highlight:	Advanced Flush Diaphragm Pressure Sensor , BP93420-IIIQ Flush Diaphragm Pressure Sensor

Product Description

Advanced Flush Diaphragm Pressure Sensor for Liquid Pressure Measurement BP93420-IIIQ

BP93420-IIIQ Pressure Transmitter

Introduction of flush diaphragm pressure sensor:

BP93420-IIIQ film pressure sensor transmitter is a simulation of pressure transmitter, using flat film structure, increasing the contact area with the medium.Wide temperature range, strong overload capacity, strong corrosion resistance, wide application. Simple structure, easy to clean, especially suitable for liquid food pressure measurement.

Performance Parameters of Flush Diaphragm Pressure Sensor
Measurement Range of Flush Diaphragm Pressure Sensor	-100kPa…0kPa ~ 35kPa…3.5MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	≤0.1%FS
Hysteresis	≤0.1%FS
Long-Term Stability	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex ia IIC T6 Ga
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.3kg

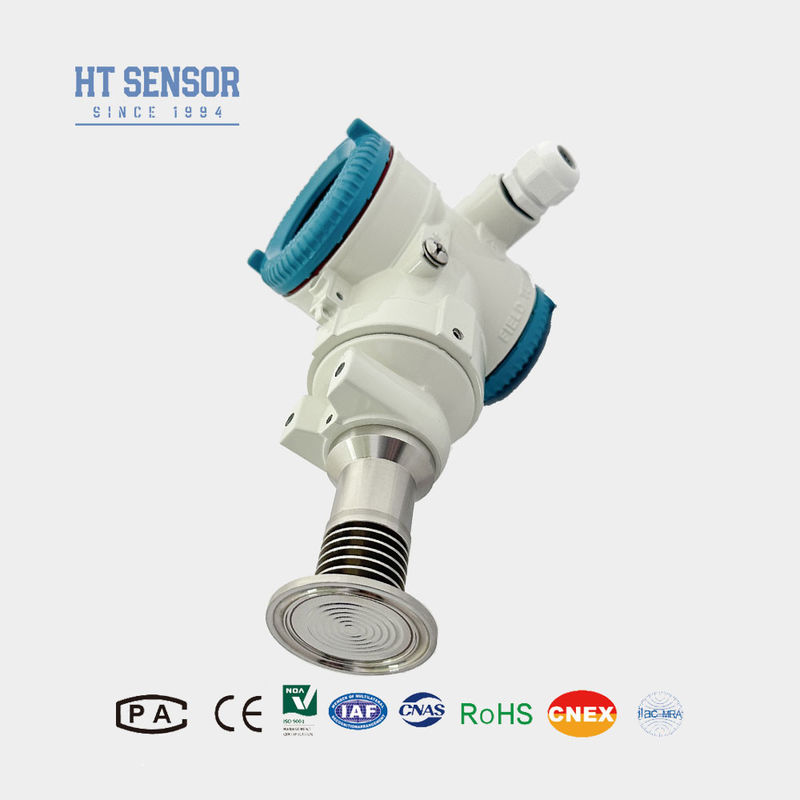

Advanced High Temperature Flush Diaphragm Pressure Sensor For Liquid Pressure Measurement BP93420-IIIQ 0

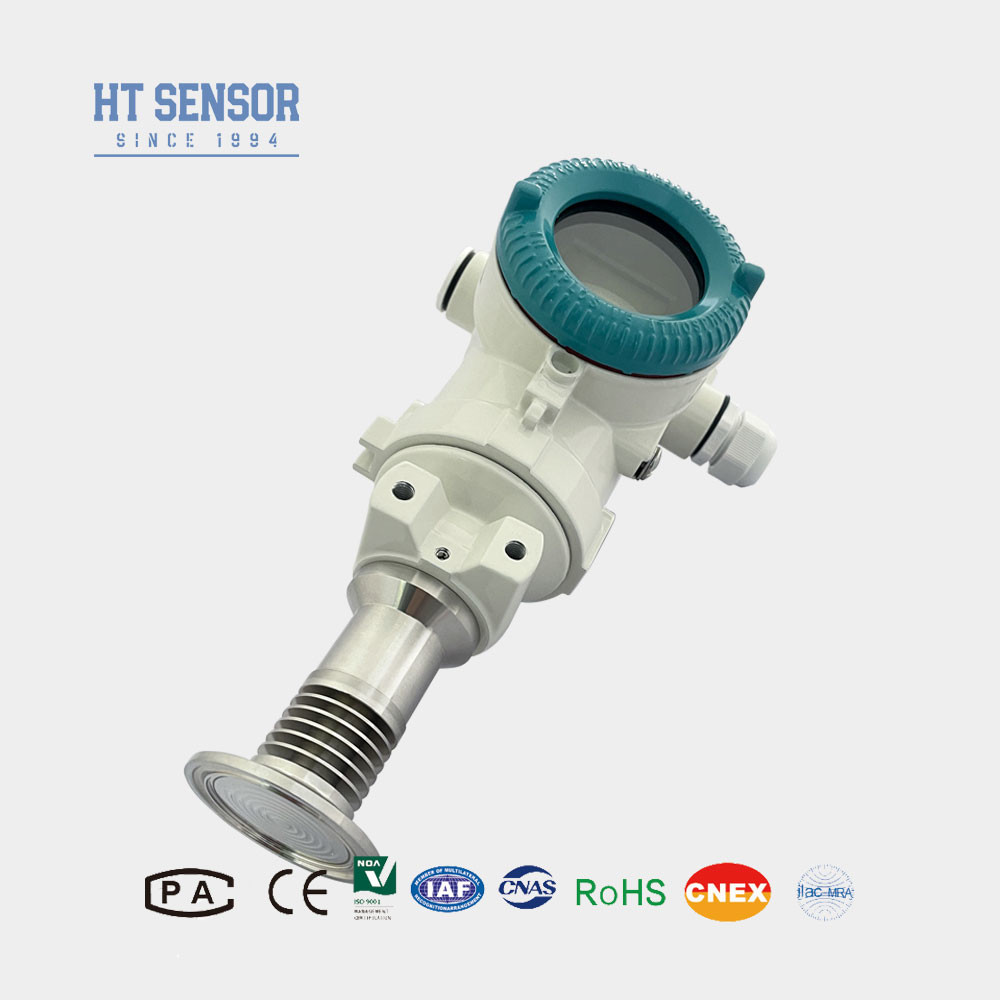

Advanced High Temperature Flush Diaphragm Pressure Sensor For Liquid Pressure Measurement BP93420-IIIQ 2

Product Features of flush diaphragm pressure sensor:

1. Wide measurement range,Various pressure interface options
2. Diverse output signal options
3. Adjustable zero and full-scale
4. High accuracy,multiple sterile process connections

Applications of flush diaphragm pressure sensor:

1. Suitable for measurement of non-corrosive gases and liquids with 316L.
2. Used for aseptic processing in medical, biopharmaceutical, food hygiene and other industries.
3. Used in the paper and chemical industries, as well as in sewage level and beverage tank pressure measurement, suitable for hydraulic and pneumatic control systems.

Output Signal of flush diaphragm pressure sensor	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V
0/1~10V
0.5~4.5V	5VDC
RS485 Communication Protocol	3.6~30V / Battery	4 wire

Hengtong 4-20mA Sanitary Clamp Type Smart Pressure Transmitter

Ordering tips of flush diaphragm pressure sensor

1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include digital display heads.
3. When ordering a transmitter with LCD or LED display head, the power supply of the transmitter should not be less than 20VDC.
4. To ensure the reliable operation of the product, you are advised to install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
5. The rated operating temperature range of fluorine rubber O-ring is -20℃~ 250℃. When the operating temperature of the product is lower than -20 ° C, EPDM O-type sealing ring should be selected.
6. The default cable length is 1.5m and there are three kinds of materials to choose from. If there are no special instructions, polyethylene cable materials can be used. If you need a different cable material, please specify it in the order form.
7. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform us and indicate in the order.

Advanced High Temperature Flush Diaphragm Pressure Sensor For Liquid Pressure Measurement BP93420-IIIQ 7

Tag:

Place of Origin:	Baoji，China
Brand Name:	HT SENSOR
Certification:	ISO9001
Model Number:	BP93420-IIIQ

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Package
Delivery Time:	5-8 work days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	5000PCS/Month
