Name: BP93420DIII Liquid Pressure Differential Pressure Transmitter For Industrial Processes
Brand: Baoji Hengtong Electronics Co., LTD
SKU: BP93420DIII
Price: 22.00 USD
Availability: InStock

Detail Information

Model NO.:	BP93420D-III	Customized:	Customized
Pressure Type:	Differential Pressure	Transport Package:	Standard Export Packing With Carton
Specification:	10kpa~2Mpa	HS Code:	9026201090
Type:	Differential Pressure Transmitter	Measuring Medium:	Gas Or Liquid
Accuracy Grade:	0.25%, 0.5%,0.3%	Pressure Range:	0-10kpa...~2MPa
Samples:	US$ 80/Piece 1 Piece(Min.Order) \| Request Sample
Highlight:	BP93420DIII Differential Pressure Transmitter , Industrial Processes Differential Pressure Transmitter , Liquid Pressure Differential Pressure Transmitter

Product Description

BP93420DIII LIQUID PRESSURE DIFFERENTIAL PRESSURE TRANSMITTER

BP93420DIII Differential Pressure Transmitter

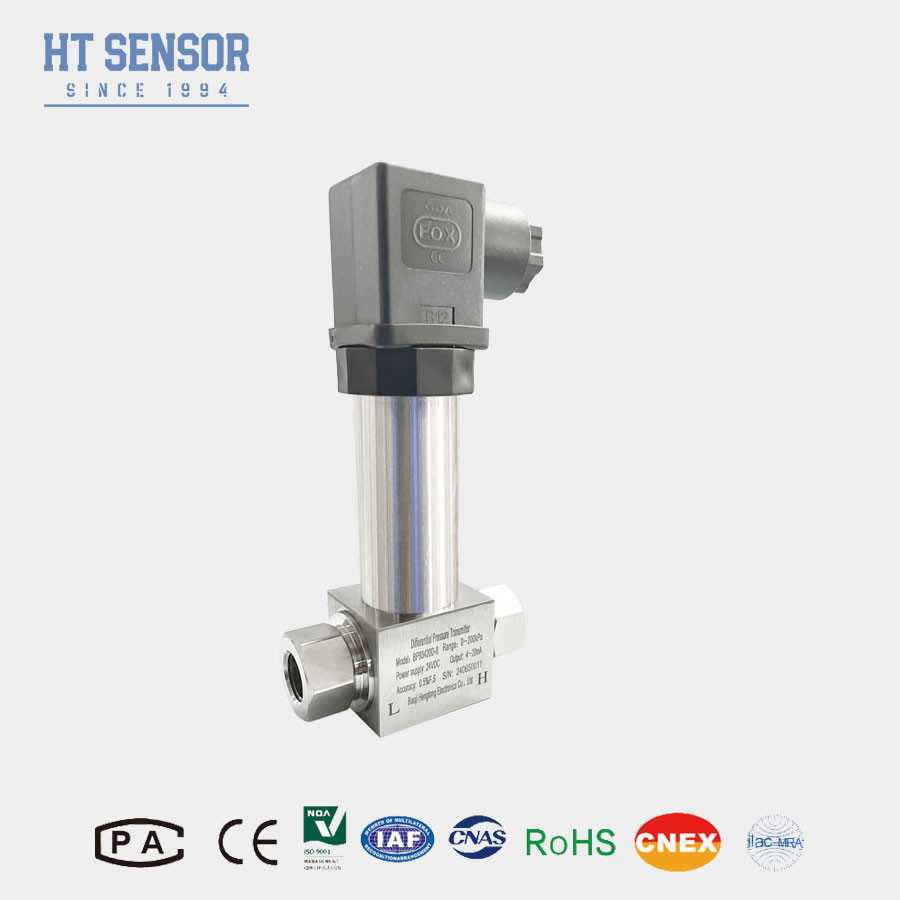

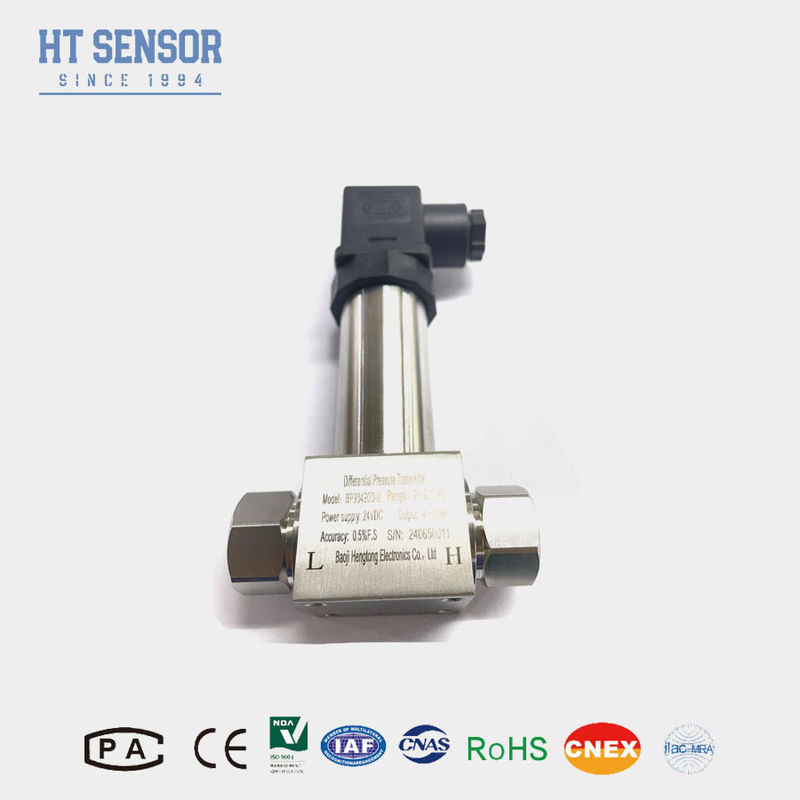

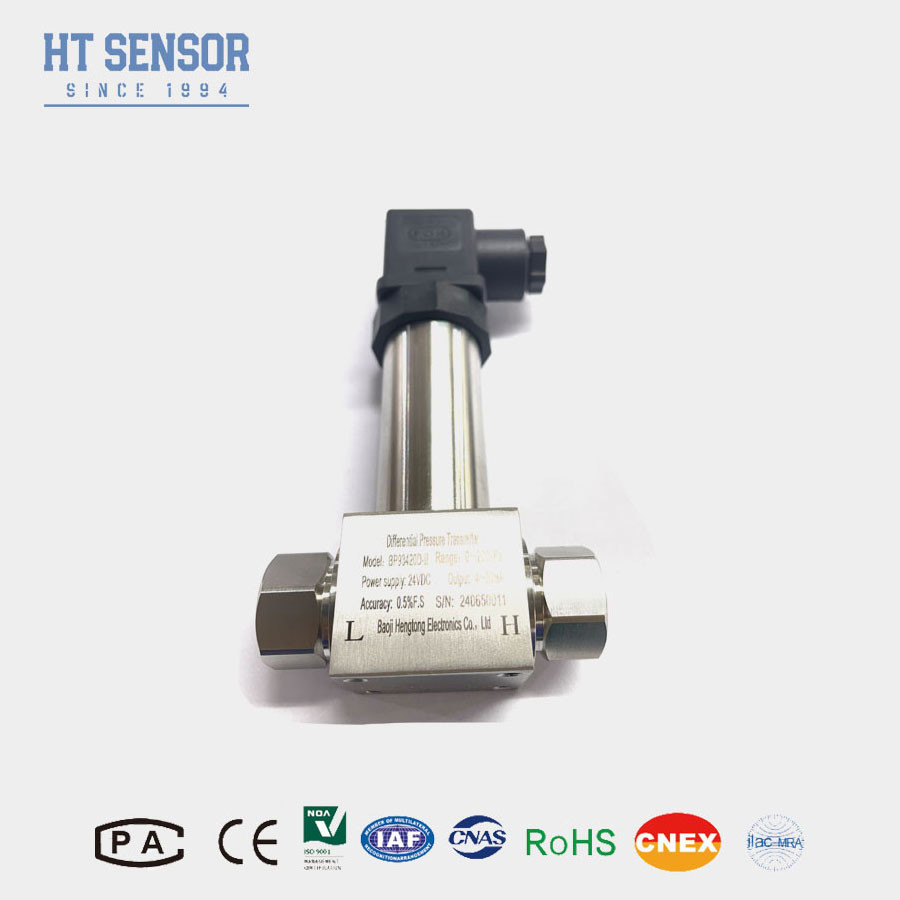

BP93420DIII Liquid Pressure Differential Pressure Transmitter For Industrial Processes 0

Introduction of differential pressure transmitter:

BP93420DIII liquid pressure differential pressure transmitter uses a piezoresistive diffused silicon sensor. When the measured medium's differential pressure acts on the corrugated diaphragms at both ends of the sensor, the output signal from the Wheatstone bridge on the sensor chip exhibits a good linear relationship with the differential pressure, enabling accurate measurement of the differential pressure. It is suitable for various gas and liquid differential pressure measurements in industries such as petroleum, chemical, power, and hydrology for pipeline applications.

Product Features:
1. The transmitter features a stainless steel structural design, making it compact and easy to install
2. It undergoes strict temperature compensation and aging screening, ensuring stable and reliable performances
3. The electrical interface can be selected as a plug-in or direct wiring option.

Applications:

1. Suitable for measuring differential pressure of various gases or liquids in pipelines of industries such as petroleum, chemical, power, and hydrology.
2. Applied in industrial on-site processes such as petroleum, chemica,metallurgy, power generation, and hydrology
3. Pressure measurement for pipelines and furnace chambers

Performance Parameters
Measurement Range	0-10KPa...~2MPa
Pressure Type	Differential Pressure
Single-side Overload	≤3 times of the rated range
Static pressure	The minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature	-30ºC~80ºC
Storage Temperature	-40ºC~100ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Intrinsically safe and explosion-proof
Protection Rating	IP65
Weight	~0.45kg

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V
0.5~4.5V	5VDC

Liquid Pressure Difference Calculation Transmitter

Order Guide:
BP93420XX	Pressure Transmitter
	Code	Outline Construction
	DII	Differential Pressure Transmitter
		Measurement Range	0-10KPa...~2MPa
			Code	Power Supply
			D1	24VDC
			D2	5VDC
			D3	Other
				Code	Output Signal
				S1	4~20mADC	S5	0~20mADC
				S2	1~5VDC	S6	0~10VDC
				S3	0~5VDC	S7	0.5~4.5VDC
				S4	0~10mADC
					Code	Pressure Connection
					J1	M20×1.5 Male
					J2	G1/2 Male
					J3	G1/4 Male
					J4	1/2 NPT Male
					J5	Other
						Code	Electrical Connection
						B1	Hirschmann
						B2	PG7 Plug
						B3	Sealed Cable Output
						B4	Other
							Code	Pressure Type
							D	Differential Pressure

Q&A

1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.

company

Tag:

Place of Origin:	Baoji，China
Brand Name:	HT sensor
Certification:	CE,RoHs,ISO9001
Model Number:	BP93420DIII

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Package
Delivery Time:	5-8 work days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	5000PCS/Month
