| Model NO.: | BHZ93420-III | Pressure Range: | 0-1m-400 H2O |
|---|---|---|---|
| Cable: | PE,PU,PTFE | Accuracy: | ≤0.5%F.S |
| Diaphragm Material: | 316L Stainess Stee | Net Weignt: | 1.6kg |
| Type: | Silicon Piezoresistive Type | Structure Design: | Input Type |
| Display Type: | LCD | IP Rating: | IP68 |
| High Light: | BHZ93420III Water Level Transmitter,Water Level Transmitter Stainless Steel IP68,Stainless Steel Intelligent Level Transmitter IP68 |
||

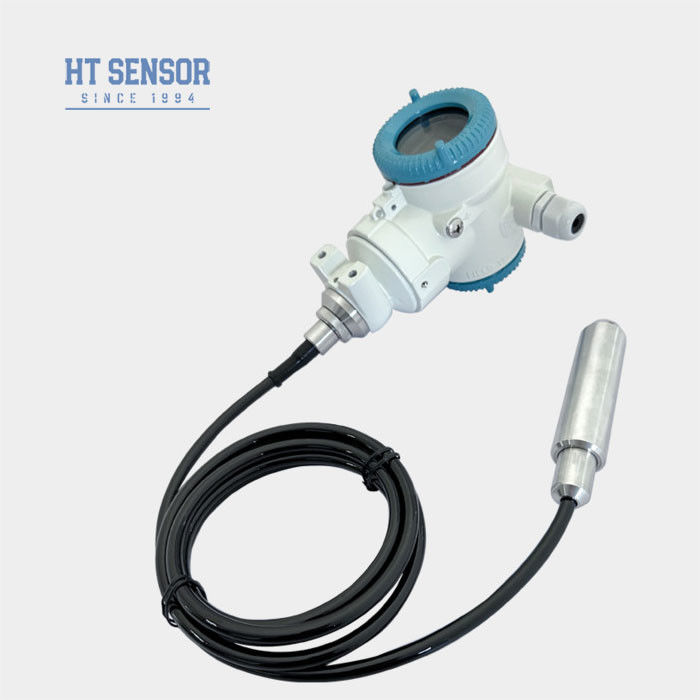

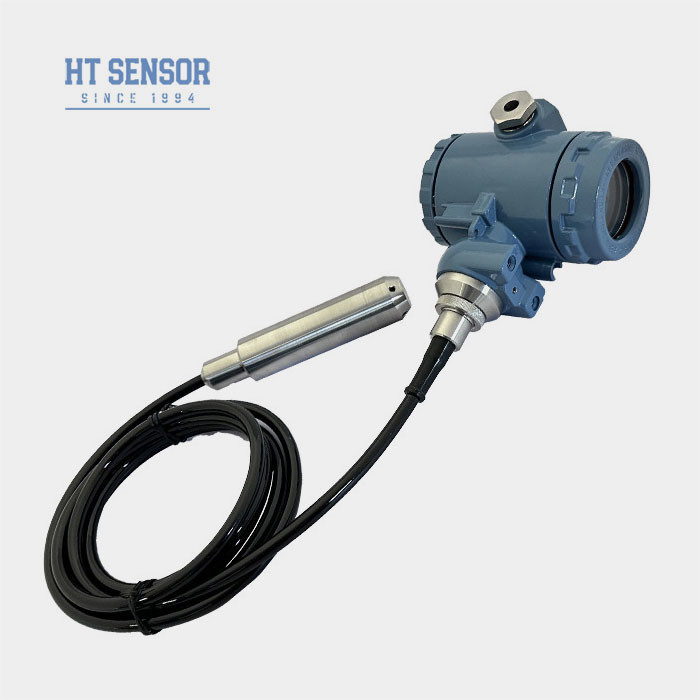

BHZ93420III Stainless Steel Hart Agreement High Precision Intelligent Liquid Level Transmitter
BHZ93420 III Liquid level Transmitter
Introduction of water level transmitter:
BHZ93420-III insertion-type intelligent liquid level transmitter is equipped with a high-precision piezoresistive silicon pressure sensor as its signal measuring element. It measures the static pressure, which is directly proportional to the liquid level. The transmitter utilizes HART communication protocol to achieve digital signal transmission and two-way communication.
intelligent liquid level transmitter typically support a variety of output modes, including analog signals (such as current or voltage), digital signals (such as RS485 or Modbus), and wireless communications (such as Wi-Fi or LoRa). This can meet the requirements of different application scenarios. The intelligent liquid level transmitter has built-in data processing and analysis function, which can process, calculate and analyze the liquid level data. For example, liquid level trend analysis, alarm Settings and anomaly detection can be performed
Product Features of water level transmitter:
Applications of water level transmitter:
Performance Parameters:
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.1% (Typ.) ±0.2% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, Stainless steel 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.6Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
| 4～20mA with Hart | 15～30VDC | 2 wire |
| Outline Construction | |
|
2088 |
 |
| 3051A |  |
| 3051 |  |
| Electrical Connection | ||||
 |
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | NC | |||
| 4 | NC | |||
 |
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | NC | |||
| 4 | NC | |||
 |
4-20mA (HART) |
1 | V+ | Red |
| 2 | V- | Yellow | ||
| 3 | GND | |||
| 4 | NC | |||
| Selection Examples |
Ordering tips:
1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
Order Guide:
| BHZ93420 | Code | Outline Construction | ||||||||
| III | Intelligent liquid level transmitter | |||||||||
| Measurement Range | 0~10m…400m | |||||||||
| Code | Power Supply | |||||||||
| D1 | 24VDC | |||||||||
| Code | Output Signal | |||||||||
| S1 | 4~20mADC | S2 | 4~20mADC with Hart | |||||||
| Code | Electrical Connection | |||||||||
| B4 | 2088 with display | |||||||||
| B5 | 3051 | |||||||||
| B6 | 3051A | |||||||||
| Code | Pressure Type | |||||||||
| G | Gauge Pressure | |||||||||
| A | Absolute Pressure | |||||||||
| S | Sealed Reference Pressure | |||||||||
| Code | Cable Material | |||||||||
| C1 | PE | |||||||||
| C2 | PU | |||||||||
| C3 | PTFE | |||||||||
