Detail Information

Model NO.:	BH93420-WS	Pressure Range:	Gauge Pressure, Absolute Pressure
Accuracy Grade:	0.2%,0.5%	IP Rating:	IP68
Net Weight:	2.1kg	Diaphragm Material:	316L Stainless Steel
Housing Material:	316L Stainless Steel	Stability:	±0.1%F.S/Year(Typ.)
Measurement Range:	0~10m…400m	Overload:	≤ 2X Rated Range
Accuracy @ 25ºC:	±0.25% (Typ.) ±0.5% (Max.)	Repeatability:	±0.03% (Typ.) ±0.05%FS (Max.)
Operating Temperature:	-20~100ºC	Explosion-proof Rating:	ExiaIICT6
Output Signal:	4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V
Highlight:	316L stainless steel water level sensor , IP68 sewage level transmitter , high accuracy water level sensor

Product Description

BH-WS Sewage Level Sensor

The BH-WS sewage level sensor utilizes a high-precision piezoresistive silicon pressure sensor as the sensitive measuring element. It features a robust and durable design with full 316L stainless steel construction, making it ideal for measuring liquid levels in harsh environments with contaminated liquids.

Key Features

Specially designed for harsh industrial environments
Explosion-proof certification: ExiaIICT6
High protection rating: IP68
Full 316L stainless steel construction for superior corrosion resistance
High precision measurement with excellent stability

Applications

Compatible with 316L stainless steel and non-corrosive liquids
Oil level monitoring in diesel tanks, fuel tanks, and other fuel containers
Level measurement in polluted liquids including:
- Sludge tanks and clarifiers
- Digesters and alum tanks
- Chemical storage tanks
- Sewage pits and water reservoirs

Performance Parameters

Measurement Range	0~10m...400m
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Long-Term Stability	±0.2%F.S/year (Max.)
Operating Temperature	-20~100ºC
Housing Material	316L Stainless Steel
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP67, IP68

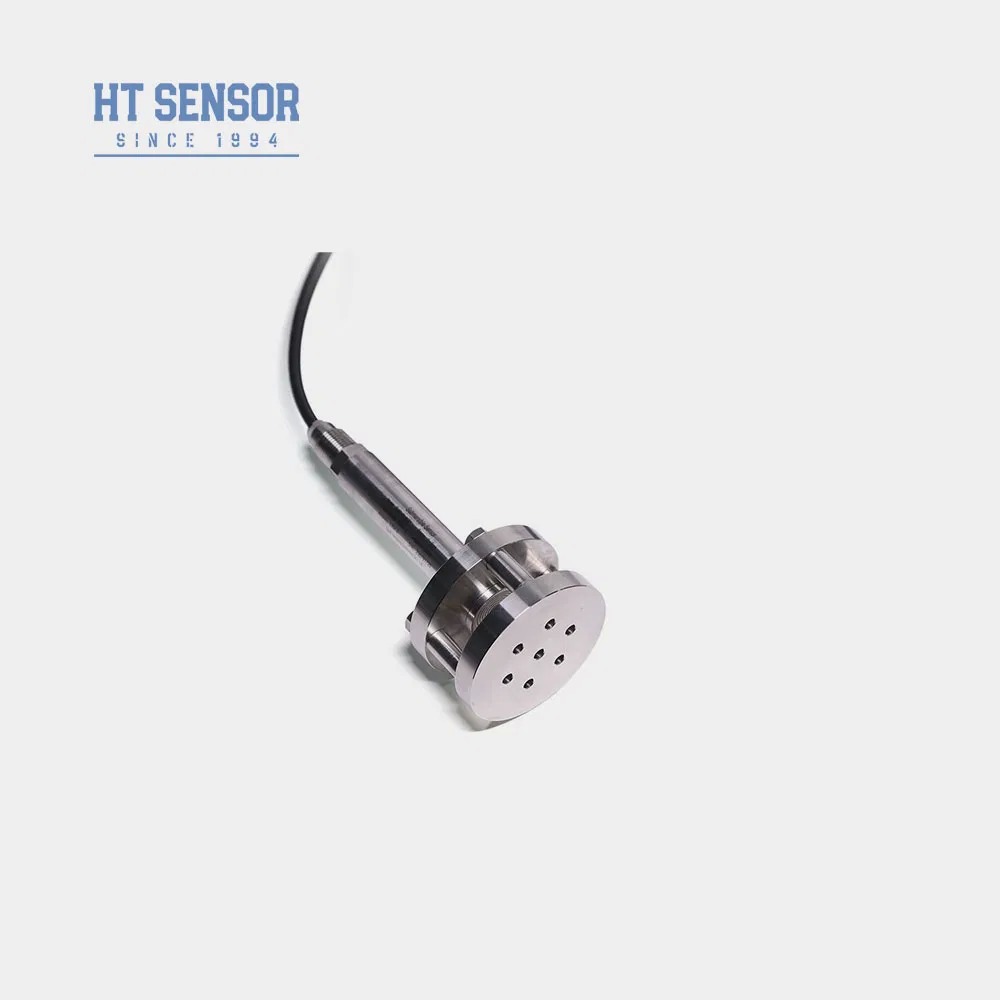

Product Images

Ordering Information

Important Considerations

Ensure measured medium compatibility with product materials
Specify the density of the measured medium
For strong electromagnetic/RF interference environments, provide details
Install lightning protection devices and ensure proper grounding

Order Guide

Code	Option
D1	24VDC Power Supply
D2	5VDC Power Supply
S1	4~20mADC Output
S2	1~5VDC Output
G	Gauge Pressure Type
A	Absolute Pressure Type
C1	PE Cable Material

Frequently Asked Questions

Q: What are the key features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance with customization options available.
Q: Can you customize special specifications?
A: Yes, our engineers can tailor products to meet specific requirements with OEM and ODM services.
Q: What is your production capacity?
A: Up to 30,000 units monthly. Contact sales for large order planning.
Q: What's the typical delivery time?
A: 5-8 working days for standard models; varies for custom products.
Q: What warranty and after-sales support do you provide?
A: 24-month warranty with 24-hour response time for support inquiries.

Tag:

Certification:	CE, RoHS, ISO9001

Minimum Order Quantity:	1
Price:	200
