Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications

Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications
Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications
Basic Information
Certification: CE, RoHS
Minimum Order Quantity: 1
Price: 18
Get Best Price Contact Now
Detail Information
Model NO.: BP93420-IC Measuring Medium: Liquid
Accuracy Grade: 0.5% Pressure Range: -100kpa...0kpa ~10kpa...100MPa
IP Rating: IP65 Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material: 316L Long-Term Stability: +-0.1%F.S/Year(Typ.)
Output Signal: 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485 Supply Voltage: 12~30VDC, 5VDC, 3.6~30V / Battery
Operating Temperature: -20ºC~150ºC Storage Temperature: -40ºC~120ºC
Diaphragm Material: 316L Insulation Resistance: 100MΩ 100VDC
Weight: ~0.3kg
Highlight:

0.25% Accuracy Pressure Transmitter

,

316L Stainless Steel Pressure Sensor

,

4-20mA Output Level Transmitter

Product Description

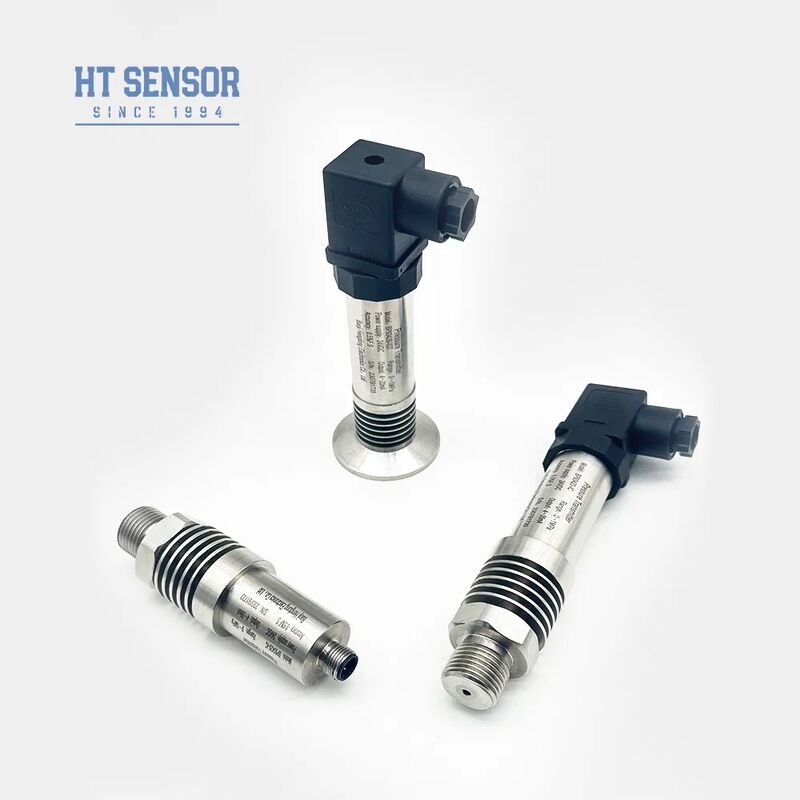

BP93420IC High-Temperature Pressure Transmitter
Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications 0
The BP93420-IC is a high-temperature pressure transmitter engineered for demanding industrial environments. Utilizing the advanced HT series silicon pressure-resistance isolation oil-filled core as its primary measuring element, this sensor captures pressure measurements through a specialized heat dissipation structure integrated directly into the transmitter.
This exceptional design makes it perfectly suitable for applications involving temperature fluctuations or elevated operating conditions, providing accurate and reliable pressure measurements in challenging high-temperature settings across various industrial processes and systems.
Product Features
  • Wide measuring range with stainless steel construction
  • Multiple pressure interface configurations available
  • IP65 protection rating with stainless steel housing
  • Zero and full-scale calibration adjustment capability
  • High precision measurement with all-stainless steel structure
Industrial Applications
  • Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
  • Marine and aviation industry applications
  • Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
  • Hydraulic and pneumatic control systems
Performance Parameters
Measurement Range-100kPa…0kPa ~ 10kPa…100MPa
Pressure TypeGauge Pressure, Absolute Pressure, Sealed Pressure
Overload Capacity≤ 1.5 times of the rated range
Accuracy @ 25ºC±0.25% (Typical) ±0.5% (Maximum)
Repeatability0.1%FS
Hysteresis0.1%FS
Long-Term Stability±0.1%F.S/Year (Typical) ±0.2%F.S/Year (Maximum)
Zero Point Temperature Drift±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response2.4Khz
Compensation Temperature0-70ºC(≤10mpa, customizable)
Operating Temperature-20ºC~150ºC
Storage Temperature-40ºC~120ºC
Vibration Resistance10g, 55Hz ~ 2kHz
Housing Material304, 316L
Diaphragm Material316L
Insulation Resistance100MΩ 100VDC
Explosion-proof RatingEx db IIC T6 Gb
Protection RatingIP65
O-Ring SealFluoro rubber
Weight~0.3kg
Output Signal Specifications
Output SignalSupply VoltageOutput Type
4~20mA12~30VDC2/3/4 wire
0~10/20mA3 wire
0/1~5V
0/1~10V
0.5~4.5V		5VDC
RS485 Communication Protocol3.6~30V / Battery4 wire
Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications 1Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications 2Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications 3Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications 4Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications 5
Ordering Guidelines
Important Ordering Considerations
  • Ensure medium compatibility with product contact parts during selection
  • Explosion-proof type products do not include digital display heads
  • Transmitters with LCD or LED display require power supply ≥20VDC
  • Install lightning protection devices and ensure proper grounding for reliable operation
  • Fluoro rubber O-ring rated for -20ºC to 250ºC; EPDM required below -20ºC
  • Default cable length: 1.5m (polyethylene); specify alternative materials if needed
  • Notify for special requirements: strong vibration, impact force, electromagnetic interference
Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications 6
Order Guide Configuration
CategoryCodeDescription
Outline ConstructionIBGeneral Pressure Transmitter
IXDisplay Pressure Transmitter
IEShock-resistant Aviation Pressure Transmitter
IIC/IIIIndustrial General/Display Pressure Transmitter
IFMoisture-proof Pressure Transmitter
INAir Conditioning Dedicated Pressure Transmitter
Power SupplyD124VDC
Power SupplyD25VDC
Output SignalS14~20mADC
Pressure ConnectionJ1M20×1.5
Electrical ConnectionB1Hirschmann
Pressure TypeGGauge Pressure
Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications 7Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications 8Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications 9Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications 10Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications 11Hengtong BP93420-IC 0.25% Accuracy 316L Stainless Steel Pressure Transmitter with 4-20mA Output for Industrial Applications 12
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.
