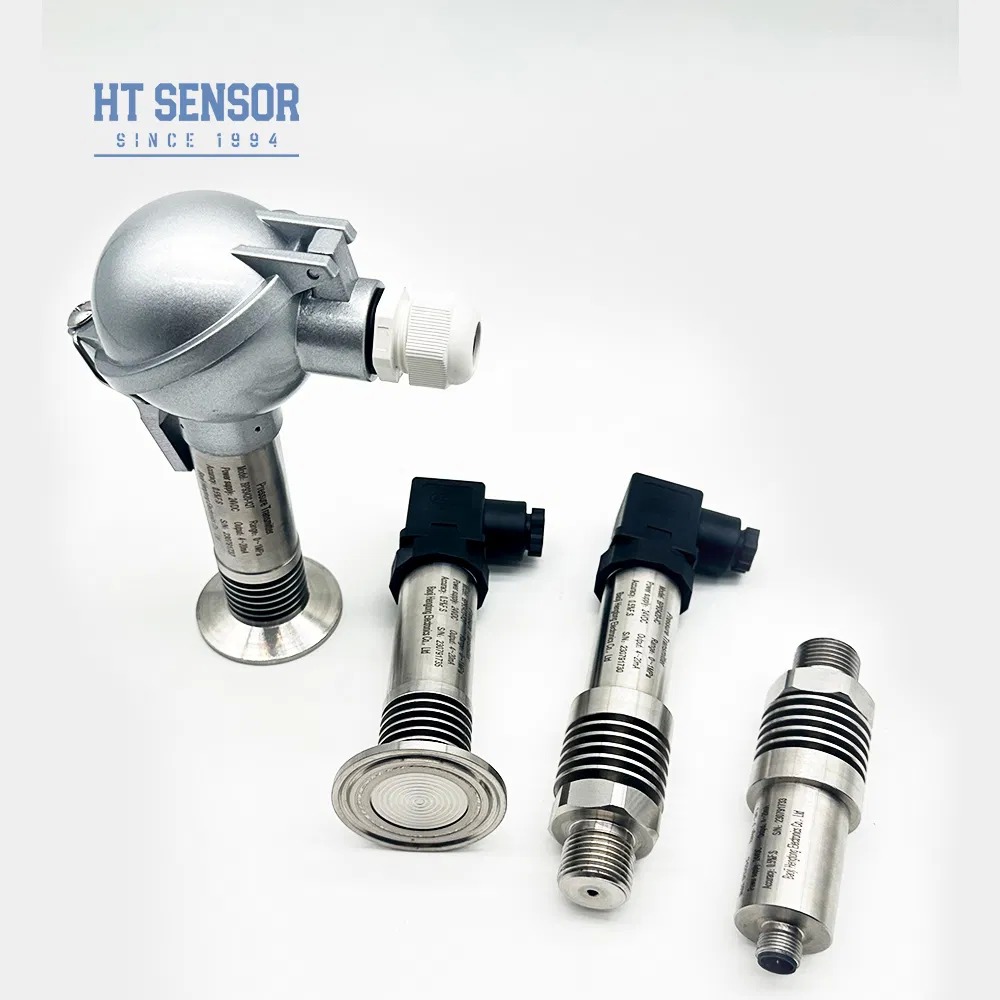

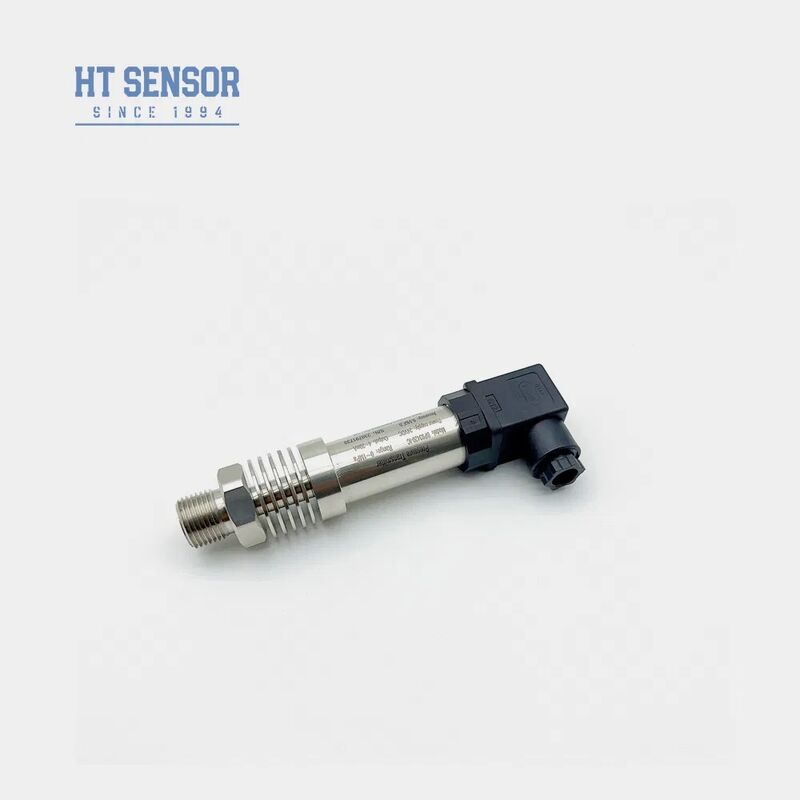

Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy

Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy
Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy
Basic Information
Certification: ISO
Minimum Order Quantity: 1
Price: 18
Get Best Price Contact Now
Detail Information
Model NO.: BP93420-IC Measuring Medium: Liquid
Accuracy Grade: 0.5% Pressure Range: -100kpa...0kpa ~10kpa...100MPa
IP Rating: IP65 Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material: 316L Long-Term Stability: +-0.1%F.S/Year(Typ.)
Overload: ≤ 1.5 Times Of The Rated Range Repeatability: 0.1%FS
Hysteresis: 0.1%FS Operating Temperature: -20ºC~150ºC
Storage Temperature: -40ºC~120ºC Output Signal: 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485
Weight: ~0.3kg
Highlight:

High Temperature-Resistance Pressure Transmitter

,

316L Stainless Steel Pressure Sensor

,

0.5% Accuracy Pressure Transducer

Product Description

BP93420IC High Temperature Pressure Transmitter

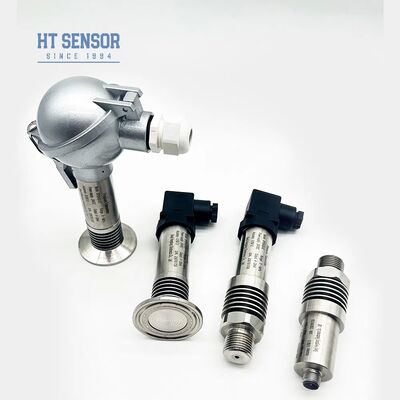

Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy 0
The BP93420-IC is a high-temperature pressure transmitter that utilizes the advanced HT series silicon pressure-resistance isolation oil-filled core as its core measuring element. The sensor efficiently captures the pressure of the measured medium through a specialized heat dissipation structure integrated into the transmitter. This exceptional design makes it perfectly suitable for demanding environments with high temperatures, making it an ideal choice for applications that involve temperature fluctuations or operate under elevated conditions.
Key Features
  • Wide measuring range with stainless steel structure
  • Multiple pressure interface forms available
  • IP65 protection rating stainless steel construction
  • Zero and full-scale adjustable calibration
  • High precision measurement capabilities
Applications
  • Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
  • Marine and aviation industry applications
  • Industrial on-site processes including petroleum, chemical, metallurgy, power generation, and hydrology
  • Hydraulic and pneumatic control systems
Performance Parameters
Measurement Range -100kPa…0kPa ~ 10kPa…100MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability 0.1%FS
Hysteresis 0.1%FS
Long-Term Stability ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response 2.4Khz
Compensation Temperature 0-70ºC(≤10mpa,customizable)
Operating Temperature -20ºC~150ºC
Storage Temperature -40ºC~120ºC
Vibration 10g,55Hz ~ 2kHz
Housing Material 304,316L
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Protection Rating IP65
O-Ring Seal Fluoro rubber
Weight ~0.3kg
Output Signal Specifications
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0/1~10V
0.5~4.5V		 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire

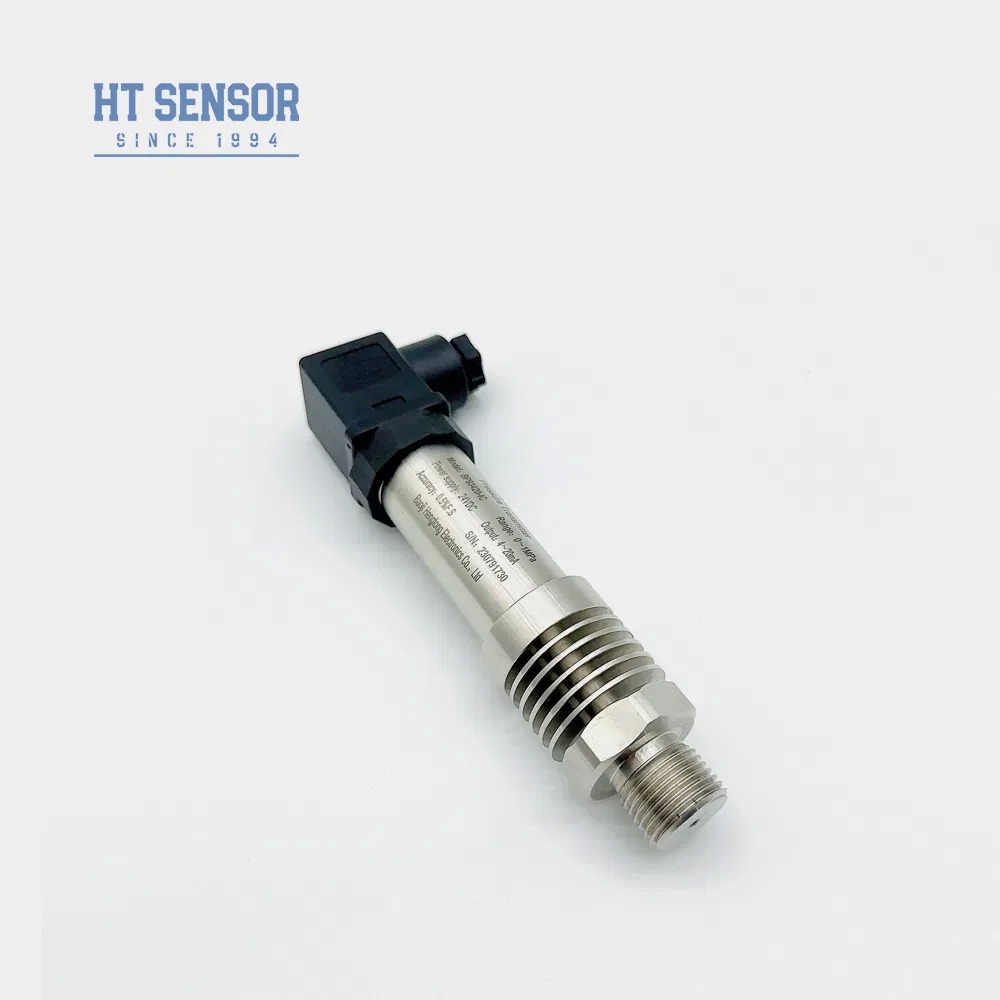

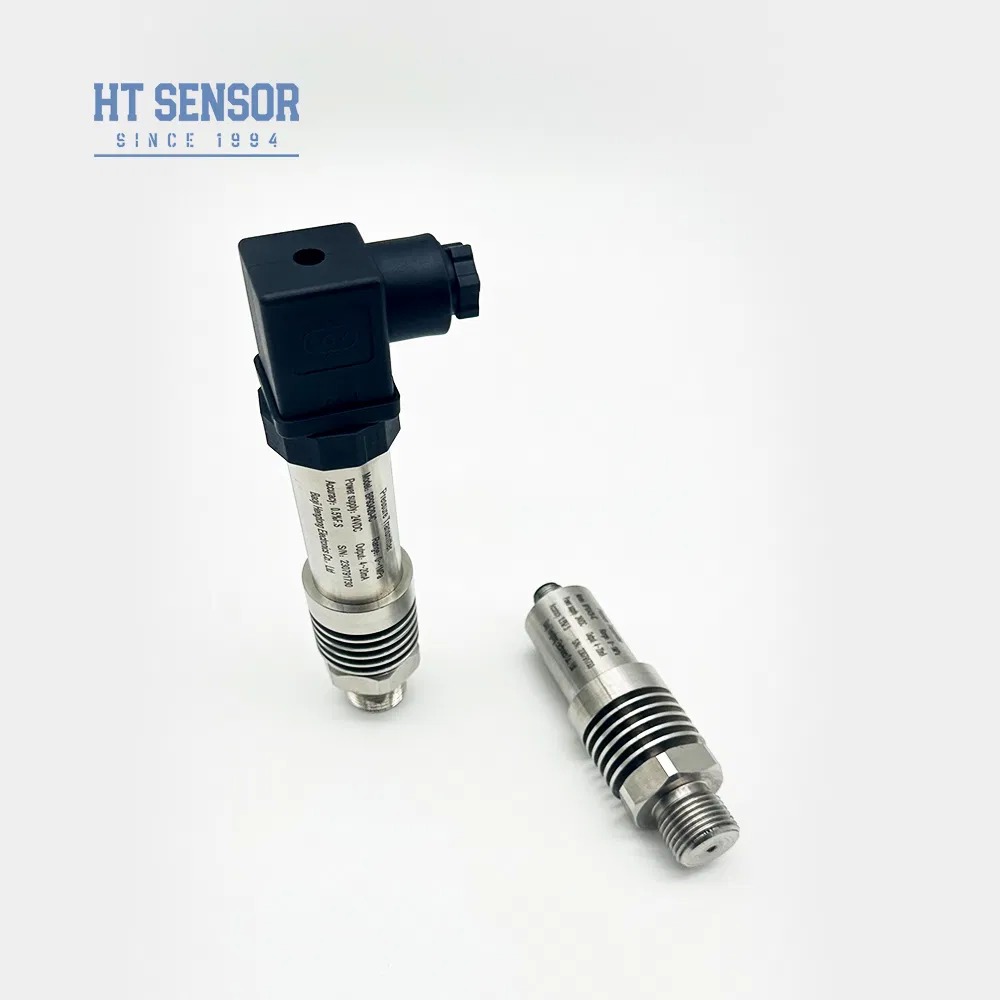

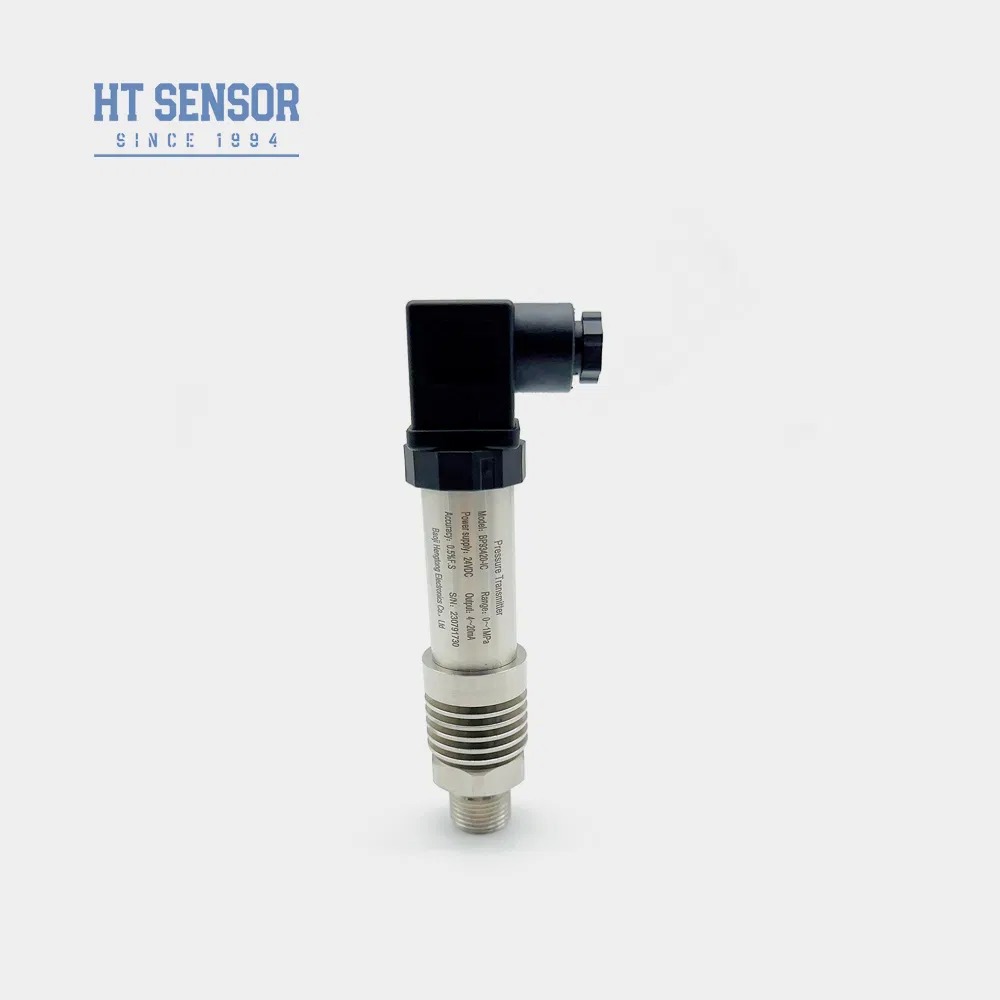

Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy 1 Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy 2 Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy 3 Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy 4
Ordering Guidelines
  • Ensure the measured medium is compatible with the product's contact parts
  • Explosion-proof type products do not include digital display heads
  • For transmitters with LCD or LED display, power supply should not be lower than 20VDC
  • Install lightning protection devices and ensure proper grounding for reliable operation
  • Fluoro rubber O-ring rated for -20ºC to 250ºC; for temperatures below -20ºC, select EPDM O-ring
  • Default cable length is 1.5m (polyethylene material); specify alternative materials in order
  • Notify us of special requirements including strong vibration, impact force, or electromagnetic interference
Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy 5
Ordering Guide
BP93420XX | Pressure Transmitter
Code Outline Construction
IB General Pressure Transmitter
IX Display Pressure Transmitter
IE Shock-resistant Aviation Pressure Transmitter
IIC/III Industrial General/ Display Pressure Transmitter
IF Moisture-proof Pressure Transmitter
IIE/IIIE General/Display Pressure Transmitter
IN Air Conditioning Dedicated Pressure Transmitter
IC High-temperature Pressure Transmitter
IQ/IQT Large Diaphragm /High-temperature Pressure Transmitter
Code Power Supply
D1 24VDC
D2 5VDC
D3 Other
Code Output Signal
S1 4~20mADC
S2 1~5VDC
S3 0~5VDC
S4 0~10mADC
S5 0~20mADC
S6 0~10VDC
S7 0.5~4.5VDC
Code Pressure Connection
J1 M20×1.5
J2 G1/2
J3 G1/4
J4 7/16-20UNF
J5 Other
Code Electrical Connection
B1 Hirschmann
B2 PG7 Plug
B3 Sealed Cable Output
B4 2088 Industrial Casing
B5 2088 Industrial Casing with Display
B6 Other
Code Pressure Type
G Gauge Pressure
A Absolute Pressure
S Sealed Reference Pressure
Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy 6 Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy 7 Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy 8 Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy 9 Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy 10 Hengtong OEM High Temperature-Resistance 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy 11
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working day for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
