High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications

High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications
High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications
Basic Information
Certification: CE, RoHS
Minimum Order Quantity: 1
Price: 18
Get Best Price Contact Now
Detail Information
Model NO.: BP93420-IC Measuring Medium: Liquid
Accuracy Grade: 0.5% Pressure Range: -100kpa...0kpa ~10kpa...100MPa
IP Rating: IP65 Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material: 316L Long-Term Stability: +-0.1%F.S/Year(Typ.)
Overload: ≤ 1.5 Times Of The Rated Range Accuracy @ 25ºC: ±0.25% (Typical) ±0.5% (Maximum)
Repeatability: 0.1%FS Hysteresis: 0.1%FS
Zero Point Temperature Drift: ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) Full Scale Temperature Drift: ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response: 2.4Khz
Highlight:

High Temperature Pressure Transmitter

,

316L Stainless Steel Pressure Sensor

,

0.5% Accuracy Level Transmitter

Product Description

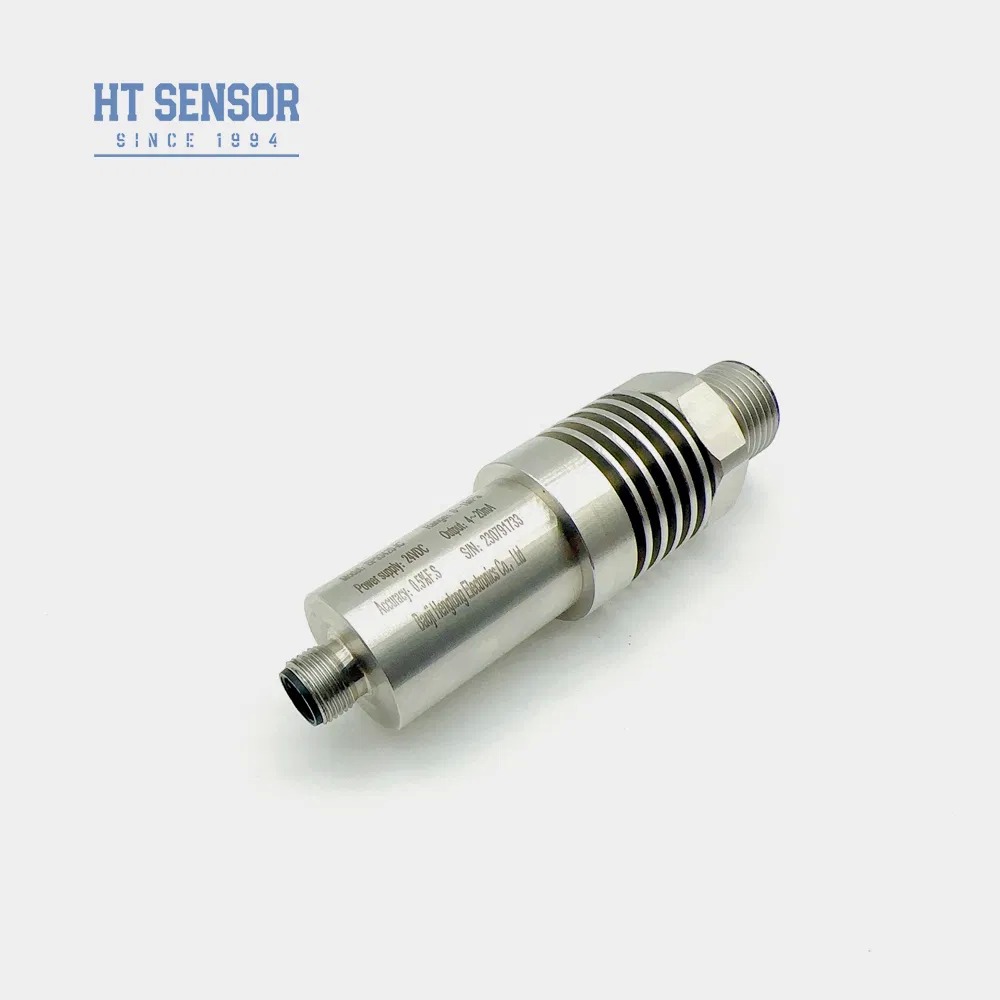

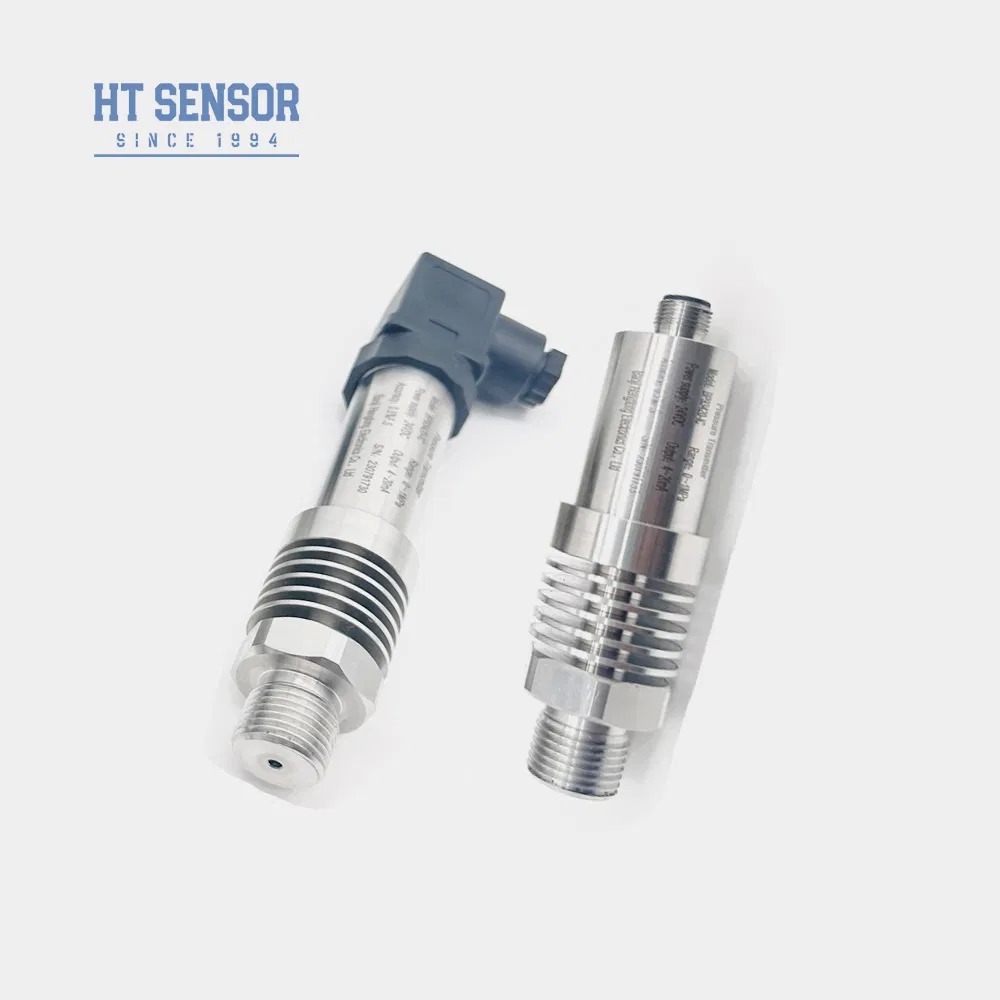

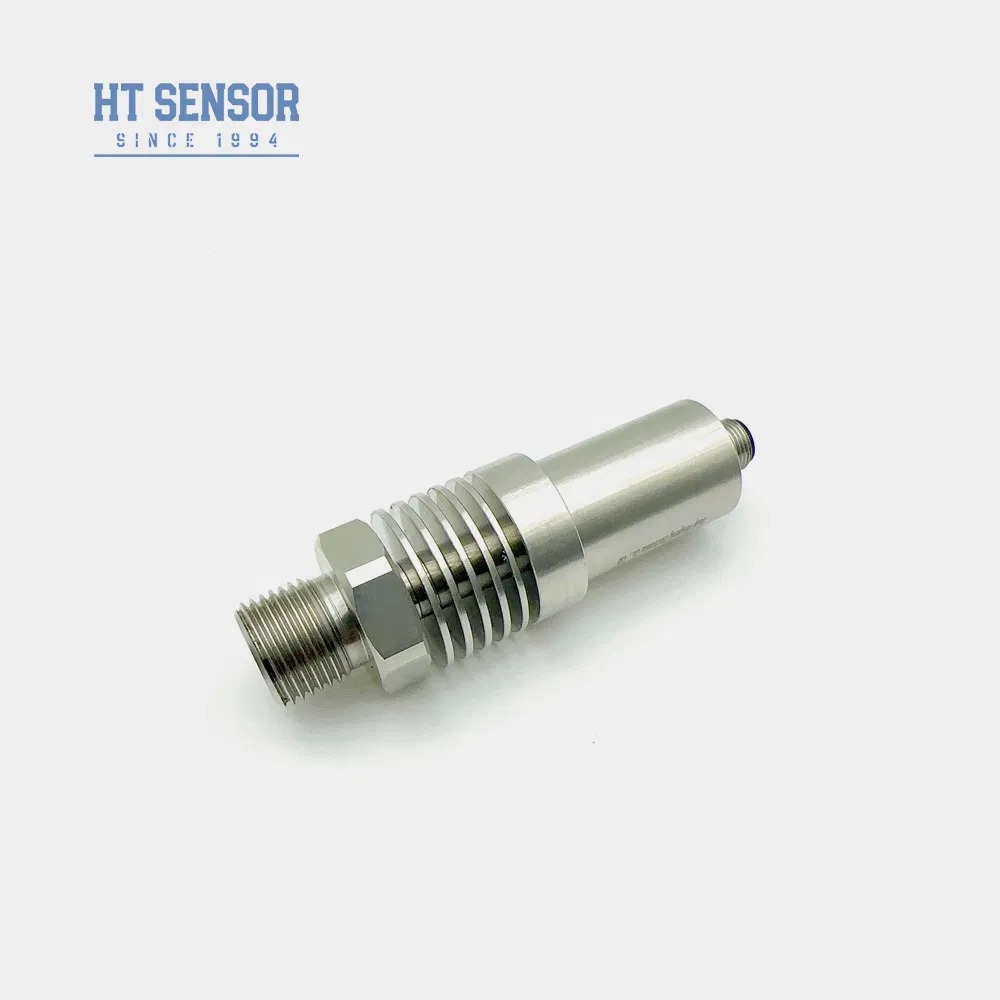

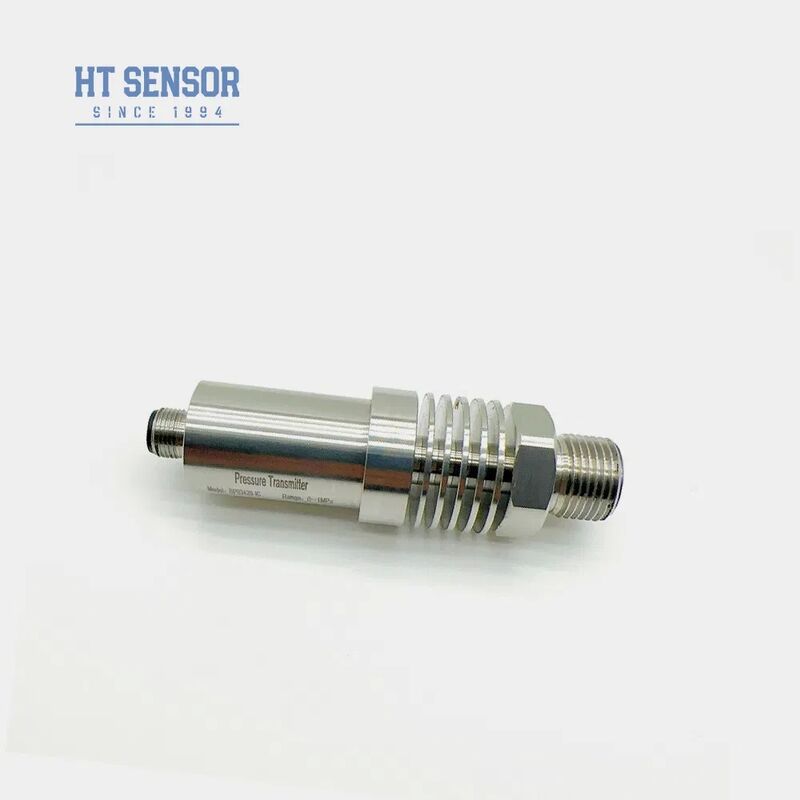

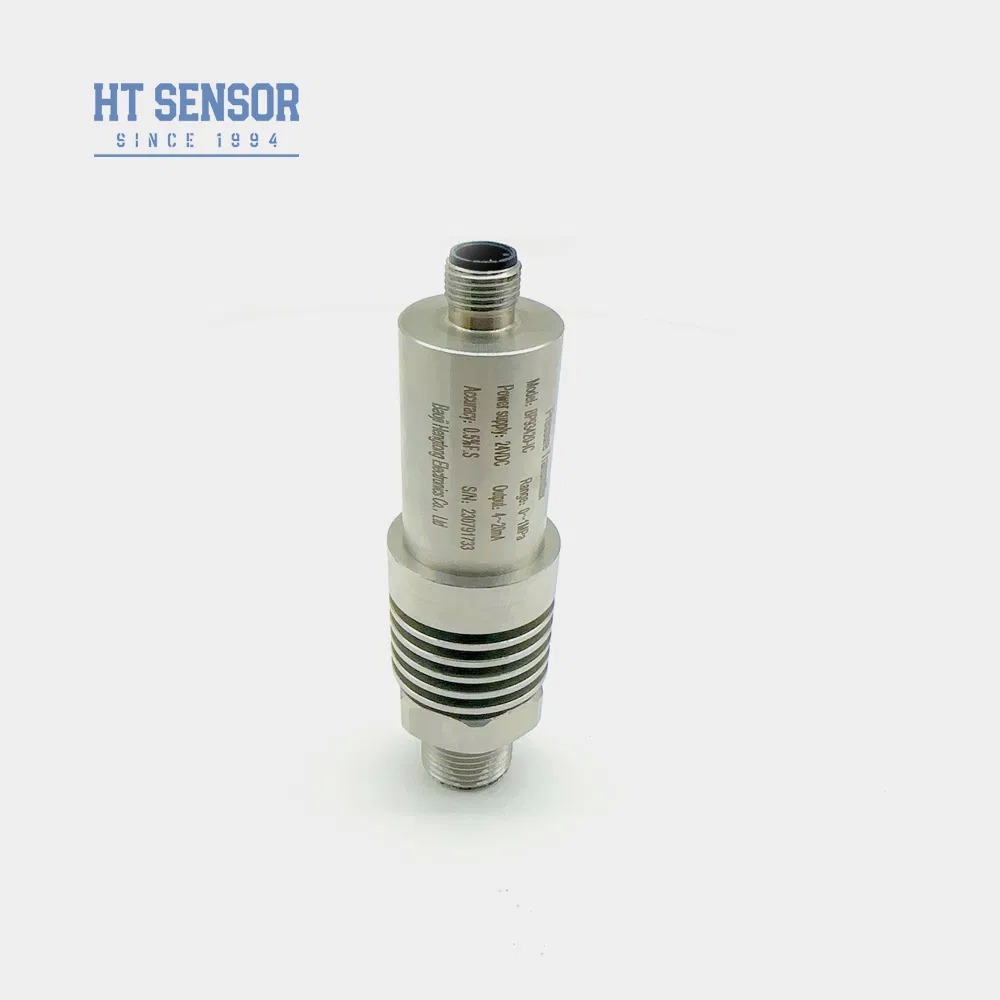

BP93420IC High Temperature Pressure Transmitter
The BP93420-IC is a high-temperature pressure transmitter that utilizes the advanced HT series silicon pressure-resistance isolation oil-filled core as its core measuring element. The sensor efficiently captures the pressure of the measured medium through a specialized heat dissipation structure integrated into the transmitter. This exceptional design makes it perfectly suitable for demanding environments with high temperatures, making it an ideal choice for applications that involve temperature fluctuations or operate under elevated conditions.
High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 0 High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 1 High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 2 High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 3
Key Product Features
  • Wide measuring range with stainless steel structure and diverse pressure interface forms
  • IP65 protection rating with stainless steel construction
  • Zero and full-scale adjustable calibration
  • High precision with all stainless steel structure
Industrial Applications
  • Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
  • Marine and aviation industry applications
  • Industrial on-site processes including petroleum, chemical, metallurgy, power generation, and hydrology
  • Hydraulic and pneumatic control systems
Performance Parameters
Measurement Range-100kPa…0kPa ~ 10kPa…100MPa
Pressure TypeGauge Pressure, Absolute Pressure, Sealed Pressure
Overload≤ 1.5 times of the rated range
Accuracy @ 25ºC±0.25% (Typical) ±0.5% (Maximum)
Repeatability0.1%FS
Hysteresis0.1%FS
Long-Term Stability±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response2.4Khz
Compensation Temperature0-70ºC(≤10mpa,customizable)
Operating Temperature-20ºC~150ºC
Storage Temperature-40ºC~120ºC
Vibration10g,55Hz ~ 2kHz
Housing Material304,316L
Diaphragm Material316L
Insulation Resistance100MΩ 100VDC
Explosion-proof RatingEx db IIC T6 Gb
Protection RatingIP65
O-Ring SealFluoro rubber
Weight~0.3kg
High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 4 High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 5 High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 6 High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 7
Output Signal Configuration
Output SignalSupply VoltageOutput Type
4~20mA12~30VDC2/3/4 wire
0~10/20mA3 wire
0/1~5V
0/1~10V
0.5~4.5V		5VDC
RS485 Communication Protocol3.6~30V / Battery4 wire
High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 8 High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 9 High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 10
Ordering Information & Guidelines
Important Ordering Tips
  • Ensure medium compatibility with product contact parts during selection
  • Explosion-proof type products do not include digital display heads
  • Transmitters with LCD or LED display require power supply ≥20VDC
  • Install lightning protection devices and ensure reliable grounding
  • Fluoro rubber O-ring rated for -20ºC to 250ºC; use EPDM for temperatures below -20ºC
  • Default cable length: 1.5m (polyethylene material)
  • Specify special requirements for vibration, impact, or electromagnetic interference
Order Guide Reference
CodeOutline Construction
IBGeneral Pressure Transmitter
IXDisplay Pressure Transmitter
IEShock-resistant Aviation Pressure Transmitter
IIC/IIIIndustrial General/Display Pressure Transmitter
IFMoisture-proof Pressure Transmitter
IIE/IIIEGeneral/Display Pressure Transmitter
INAir Conditioning Dedicated Pressure Transmitter
ICHigh-temperature Pressure Transmitter
IQ/IQTLarge Diaphragm /High-temperature Pressure Transmitter
High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 11 High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 12 High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 13 High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 14 High Temperature 316L Stainless Steel Pressure Transmitter with 0.5% Accuracy for Industrial Applications 15
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
