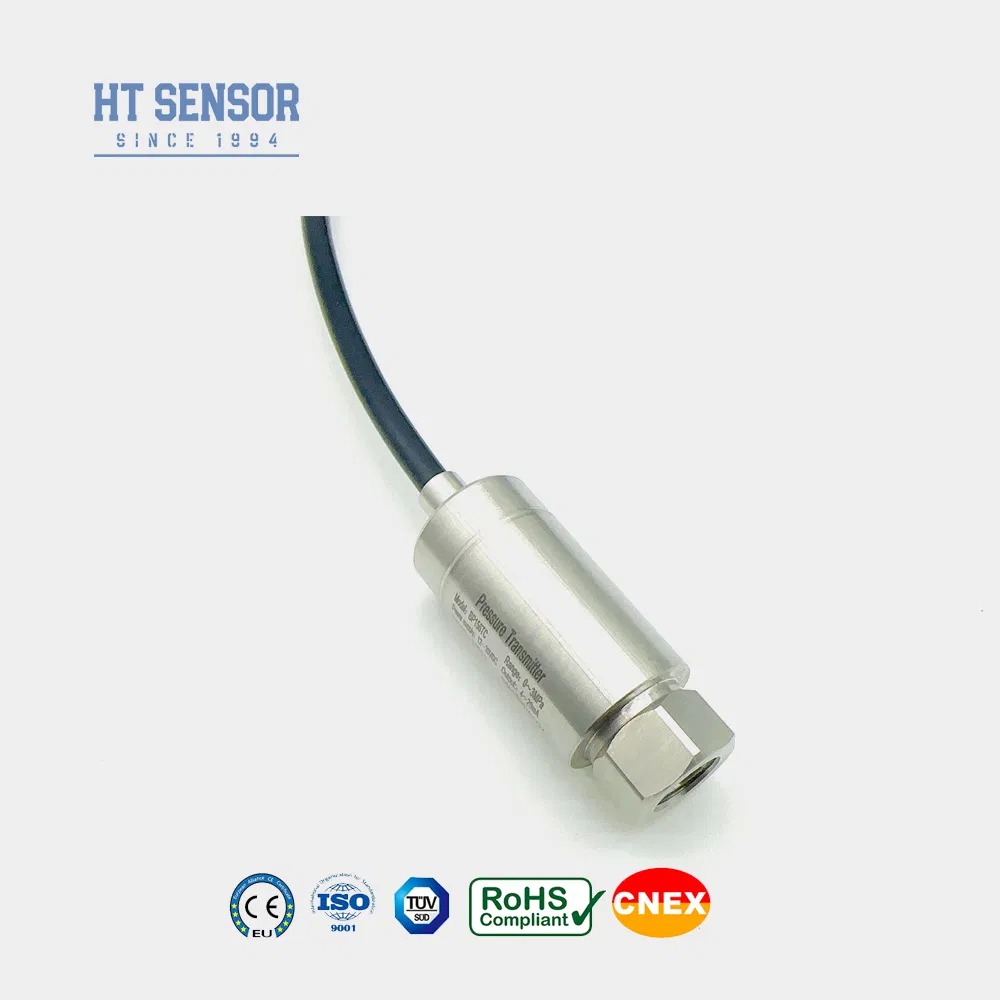

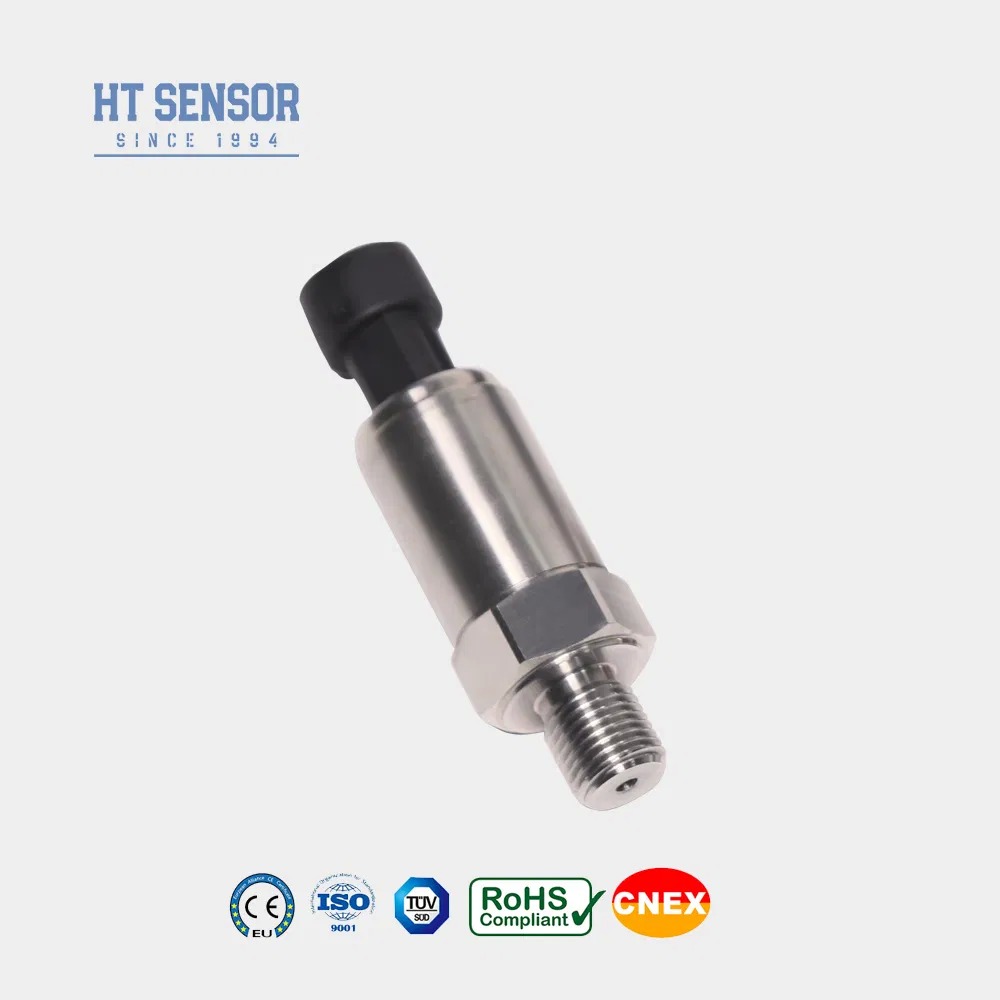

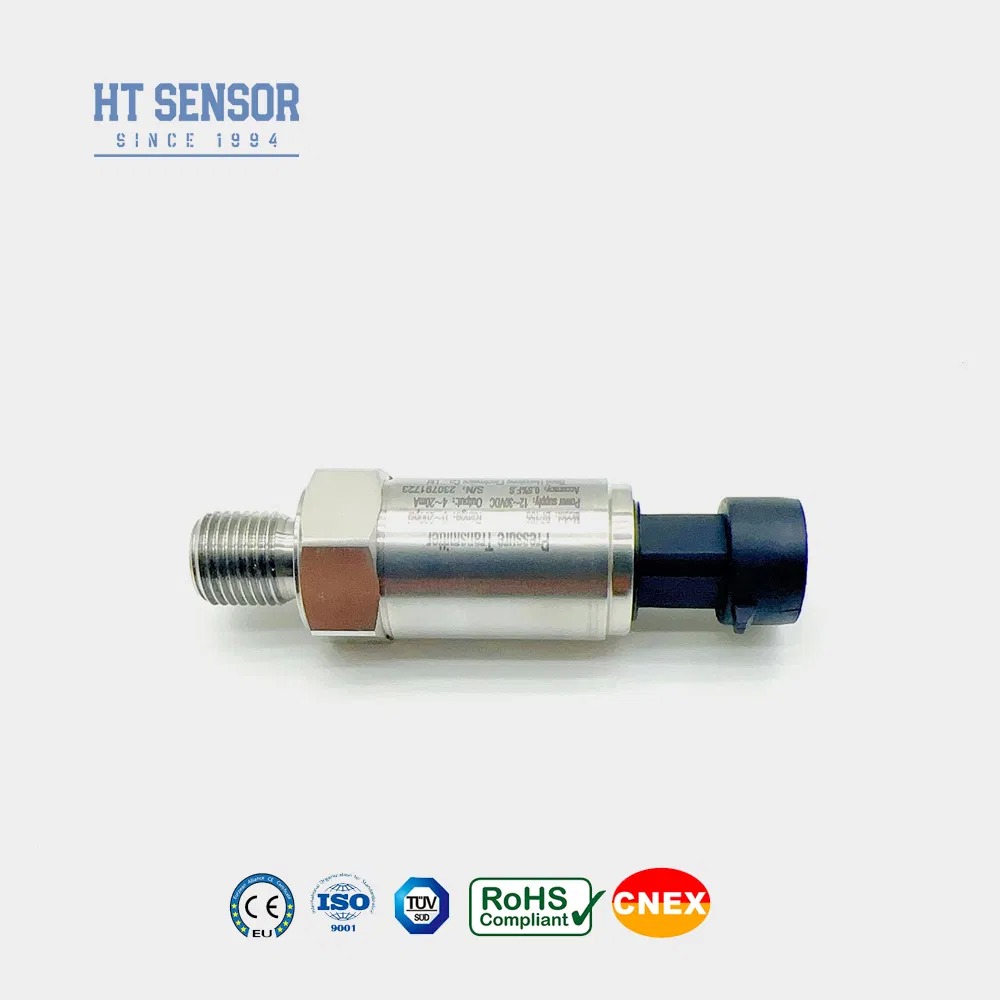

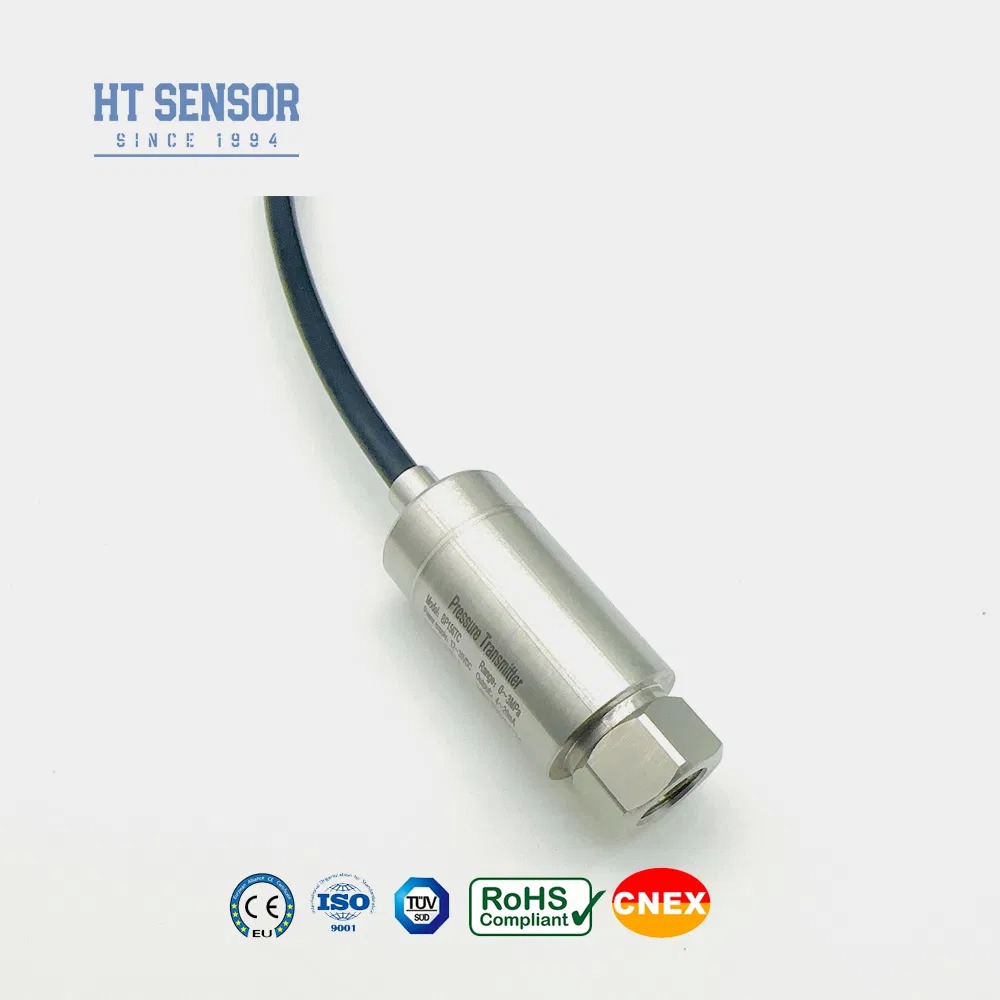

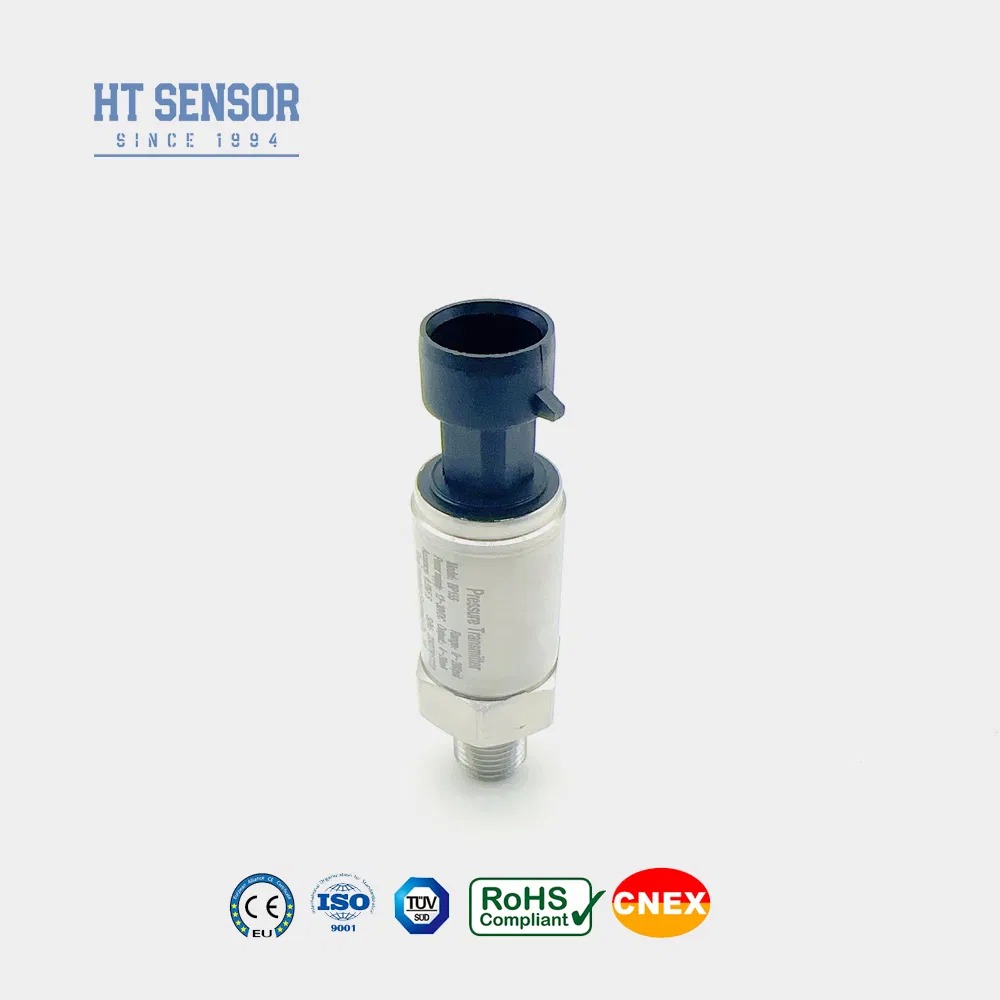

BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection

BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection
BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection
Basic Information
Certification: CE, RoHS
Minimum Order Quantity: 1
Price: 20
Get Best Price Contact Now
Detail Information
Model NO.: BP155 Measuring Medium: Air Or Liquid
Accuracy Grade: 0.25%, 0.5% Pressure Range: 0kpa~10kpa...5MPa
IP Rating: IP65 Pressure Type: Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material: 304 SS Long-Term Stability: 0.1%F.S/Year
Diaphragm Material: 316L Operating Temperature: -20ºC~80ºC
Storage Temperature: -40ºC~120ºC Insulation Resistance: 100MΩ 100VDC
Explosion-proof Rating: Ex Db IIC T6 Gb Frequency Response: 2.4Khz
Supply Voltage: 12~30VDC
Highlight:

Isolated Stainless Steel Diaphragm Pressure Sensor

,

0.25% Accuracy Pressure Transmitter

,

IP65 Protection Water Level Transmitter

Product Description

BP155 Piezoresistive Pressure Sensor With Isolated Stainless Steel Diaphragm Transmitter
Product Overview
The BP155 pressure transmitter is a cost-effective solution specifically developed for air compressors and refrigeration equipment. Incorporating advanced technology and our proprietary high-performance transmitter circuit, this product features compact dimensions, exceptional moisture resistance, and superior anti-electromagnetic interference capabilities. Rigorous testing and aging selection processes for components, semi-finished products, and finished goods ensure stable and reliable performance.
BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection 0 BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection 1
Key Features
  • Wide measuring range with stainless steel construction
  • Multiple pressure interface configurations available
  • Compact and lightweight design for easy integration
  • High precision measurement capabilities
  • All stainless steel structure for durability
Applications
  • Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
  • Marine and aviation industry applications
  • Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
  • Hydraulic and pneumatic control systems
Performance Parameters
ParameterSpecification
Measurement Range0kPa ~ 10kPa…20MPa
Pressure TypeGauge Pressure, Absolute Pressure, Sealed Pressure
Overload≤ 1.5 times of the rated range
Accuracy @ 25ºC±0.5% (Maximum)
Repeatability & Hysteresis0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response2.4Khz
Compensation Temperature0-70ºC(≤10mpa,customizable)
Operating Temperature-20ºC~80ºC
Storage Temperature-40ºC~120ºC
Vibration10g,55Hz ~ 2kHz
Housing Material304 Stainless Steel
Diaphragm Material316L Stainless Steel
Insulation Resistance100MΩ 100VDC
Explosion-proof RatingEx db IIC T6 Gb
Protection RatingIP65
O-Ring SealFluoro rubber
BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection 2 BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection 3
Output Signal Configuration
Output SignalSupply VoltageOutput Type
4~20mA12~30VDC2/3/4 wire
0~10/20mA3 wire
0/1~5V5VDC
0/1~10V
0.5~4.5V
BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection 4 BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection 5
Ordering Information
Ordering Tips
  • Ensure compatibility between the measured medium and product contact parts
  • Explosion-proof type products do not include digital display heads
  • For transmitters with LCD or LED display, power supply should not be lower than 20VDC
  • Install lightning protection devices and ensure proper grounding for reliable operation
  • Fluoro rubber O-ring rated for -20ºC to 250ºC; choose EPDM for temperatures below -20ºC
  • Default cable length is 1.5m with polyethylene material; specify alternatives in order
  • Notify us of special requirements including vibration, impact force, or electromagnetic interference
BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection 6
Order Guide
CategoryCodeDescription
Outline Construction5Packard plug
6Sealed Direct Output Cable 1.5 meters
7Mini Hirschmann Connector
8Large Hirschmann Connector
Measurement Range0-X0kPa ~ 10kPa…5MPa (X indicates actual measuring range)
Power SupplyD124VDC
D25VDC
D3Other
Output SignalS14~20mADC
S21~5VDC
S30~5VDC
S40~10mADC
S50~20mADC
S60~10VDC
S70.5~4.5VDC
Pressure ConnectionJ1M20×1.5
J2G1/2
J3G1/4
J47/16-20UNF
J5Others(¢50.4 Flange)
Electrical ConnectionB1Hirschmann
B2PG7
B3Cable Sealed Outlet 1.5 meters
B4Other
Pressure TypeGGauge Pressure
AAbsolute Pressure
SSealed Reference Pressure
BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection 7 BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection 8 BP155 Piezoresistive Pressure Sensor with Isolated Stainless Steel Diaphragm 0.25% Accuracy and IP65 Protection 9
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5~8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.
