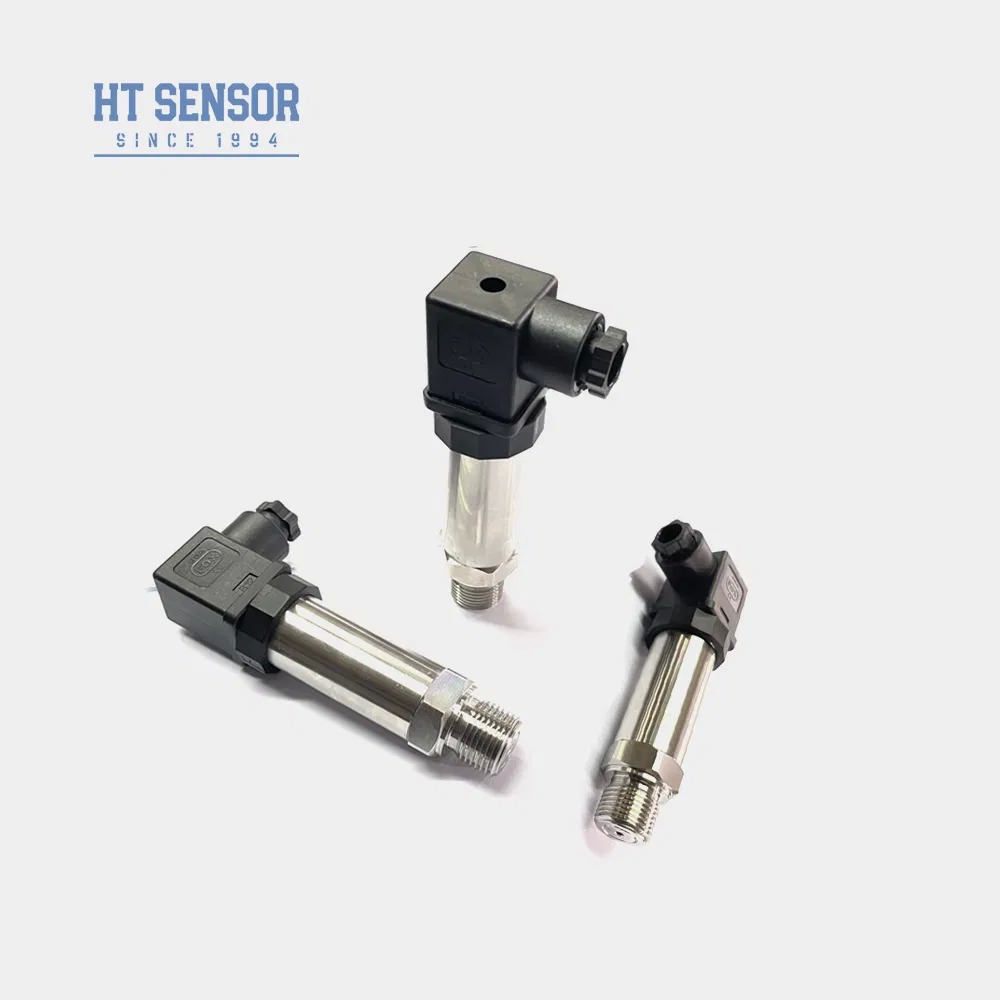

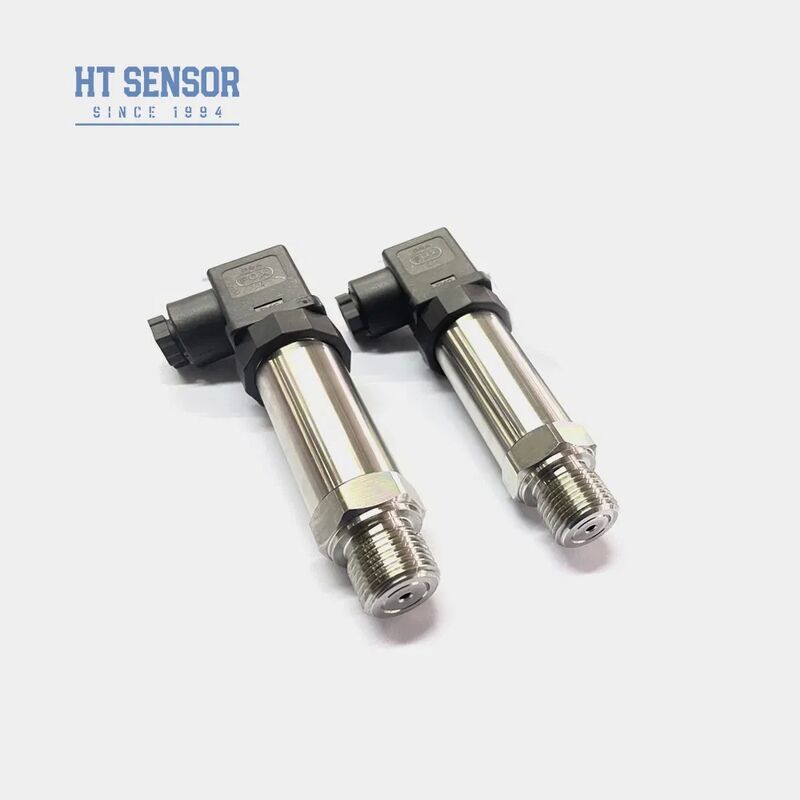

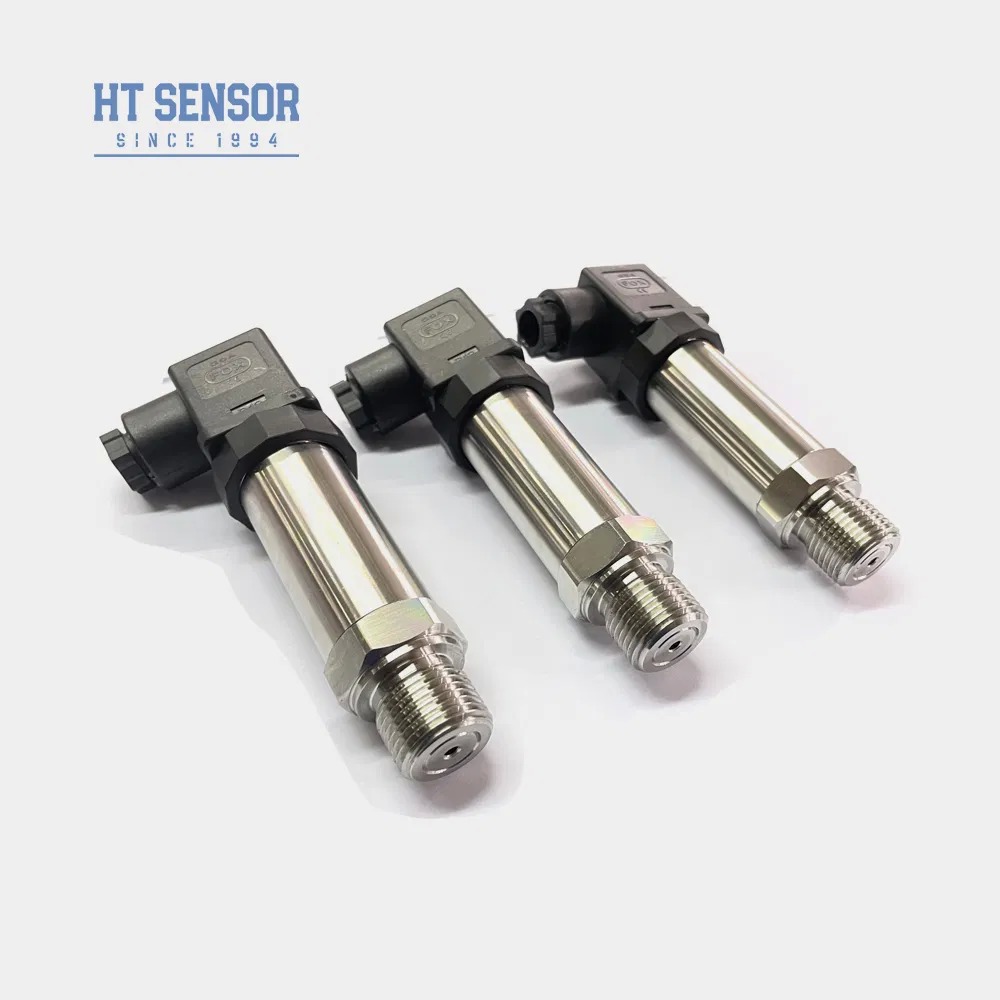

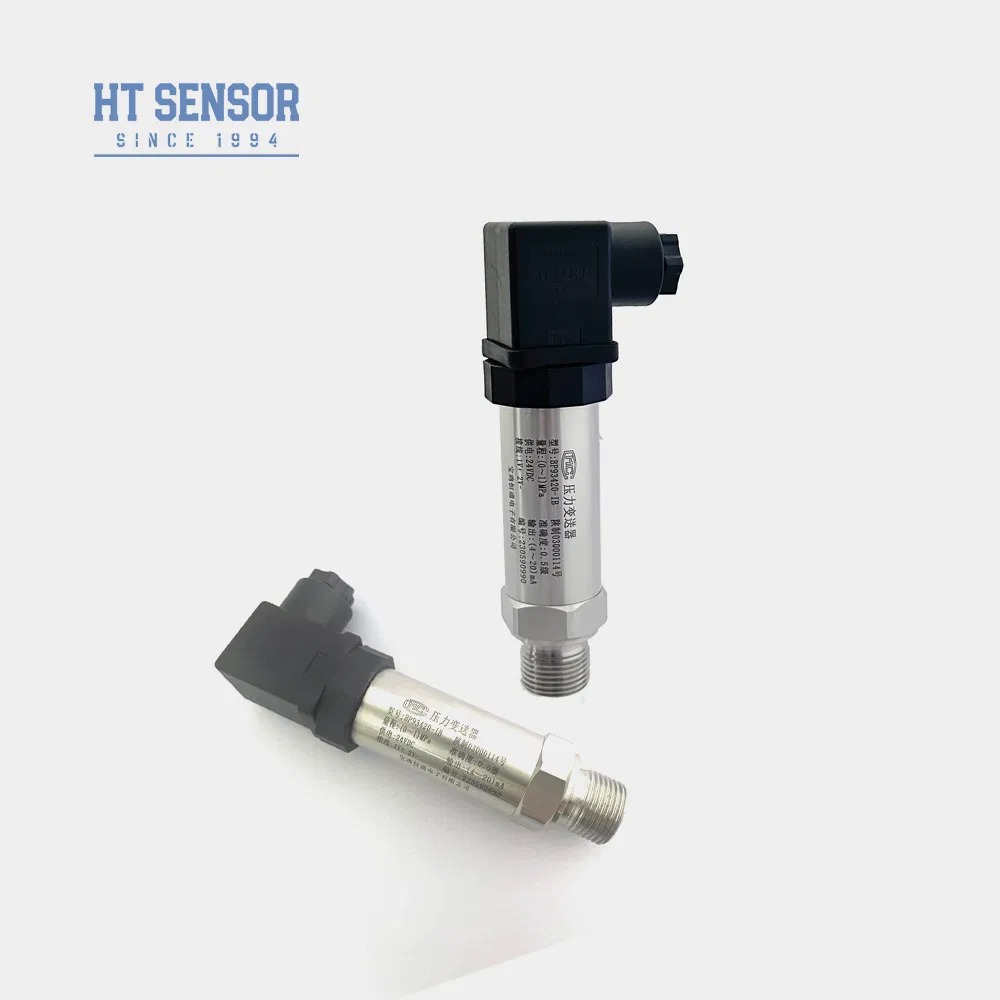

BP93420IB Pressure Transmitter
The BP93420IB pressure transmitter utilizes HT series diffusion silicon isolation oil-filled core technology as the signal measuring element. The signal processing circuit is housed within a stainless steel enclosure, converting sensor signals into standard output signals. This product undergoes rigorous testing and aging screening for components, semi-finished products, and finished goods, ensuring stable and reliable performance.
Product Features
- Wide measuring range with stainless steel construction and diverse pressure interface options
- Compact and lightweight design for easy installation
- Adjustable zero and full-scale calibration
- High precision measurement with all stainless steel structure
- Customizable zero and full-scale settings
Applications
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
Performance Parameters
| Measurement Range |
-100kPa…0kPa ~ 10kPa…100MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability |
0.1%FS |
| Hysteresis |
0.1%FS |
| Long-Term Stability |
±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift |
±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature |
0-70ºC(≤10mpa,customizable) |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Explosion-proof Rating |
Ex db IIC T6 Gb |
| Protection Rating |
IP65 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~0.15kg |
Output Signal Specifications
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
|
3 wire |
0/1~5V
0/1~10V
0.5~4.5V |
5VDC |
|
Ordering Information
Ordering Tips
- Ensure the measured medium is compatible with the product's contact parts
- Explosion-proof type products do not include digital display heads
- For transmitters with LCD or LED display heads, power supply should not be lower than 20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- Fluoro rubber O-ring rated for -20ºC to 250ºC; for temperatures below -20ºC, select EPDM O-ring seal
- Default cable length is 1.5m with polyethylene material; specify alternative materials when ordering
- Notify us of special requirements including strong vibration, impact forces, or electromagnetic interference
Order Guide
| Code |
Outline Construction |
| IB |
General Pressure Transmitter |
| IX |

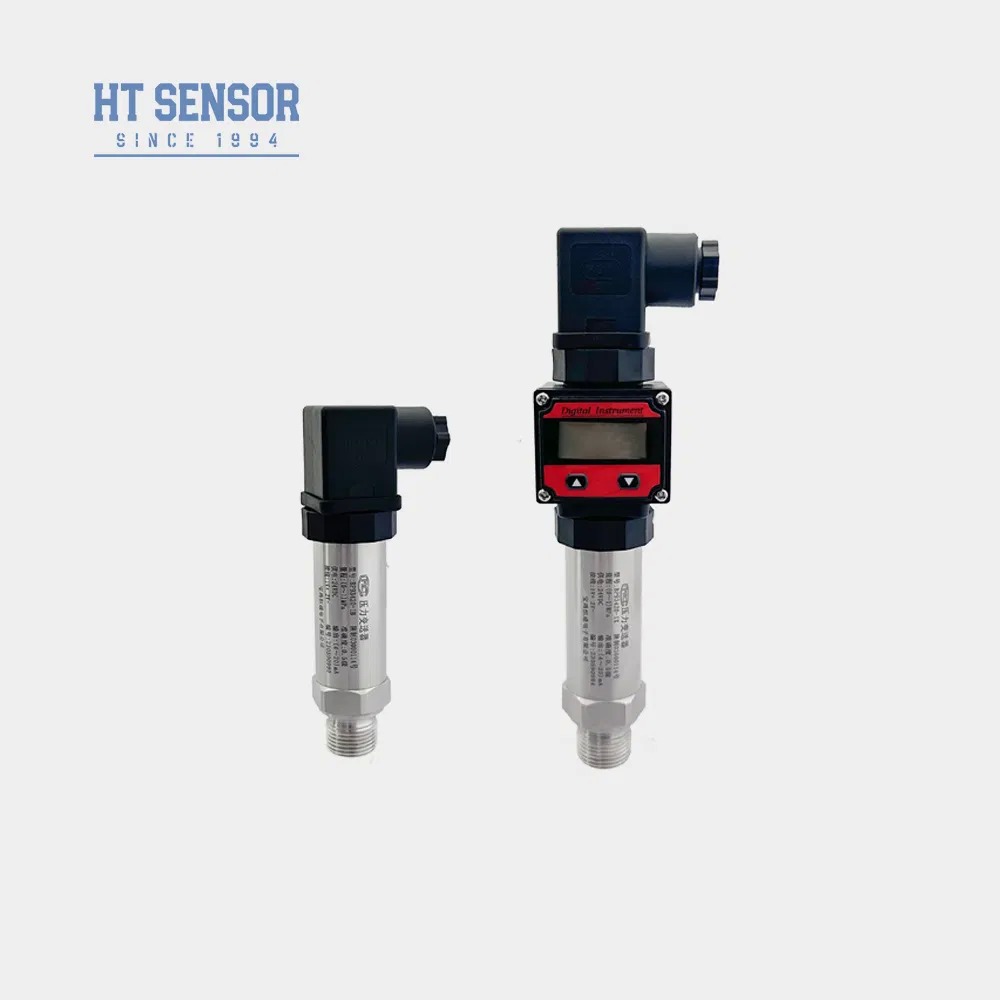

Display Pressure Transmitter |
| IE |
Shock-resistant Aviation Pressure Transmitter |
| IIC/III |
Industrial General/ Display Pressure Transmitter |
| IF |
Moisture-proof Pressure Transmitter |
| IIE/IIIE |
General/Display Pressure Transmitter |
| IN |
Air Conditioning Dedicated Pressure Transmitter |
| IC |
High-temperature Pressure Transmitter |
| IQ1/IQ2 |
Large Diaphragm /High-temperature Pressure Transmitter |
| Measurement Range |
-0.1...0~0.01...100MPa (0-X)Kpa or MPa (X indicates Actual Measuring Range) |
| Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| Code |
Output Signal |
| S1 |
4~20mADC |
| S2 |
1~5VDC |
| S3 |
0~5VDC |
| S4 |
0~10mADC |
| S5 |
0~20mADC |
| S6 |
0~10VDC |
| S7 |
0.5~4.5VDC |
| Code |
Pressure Connection |
| J1 |
M20×1.5 |
| J2 |
G1/2 |
| J3 |
G1/4 |
| J4 |
7/16-20UNF |
| J5 |
Other |
| Code |
Electrical Connection |
| B1 |
Hirschmann |
| B2 |
PG7 Plug |
| B3 |
Sealed Cable Output |
| B4 |
2088 Industrial Casing |
| B5 |
2088 Industrial Casing with Display |
| B6 |
Other |
| Code |
Pressure Type |
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
What's the typical delivery period?
5-8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty of your products? And after-sales service?
Our warranty time is 24 months after shipment, and our after-sales team will respond to your questions within 24 hours. Remote instruction via PC network is always available.
