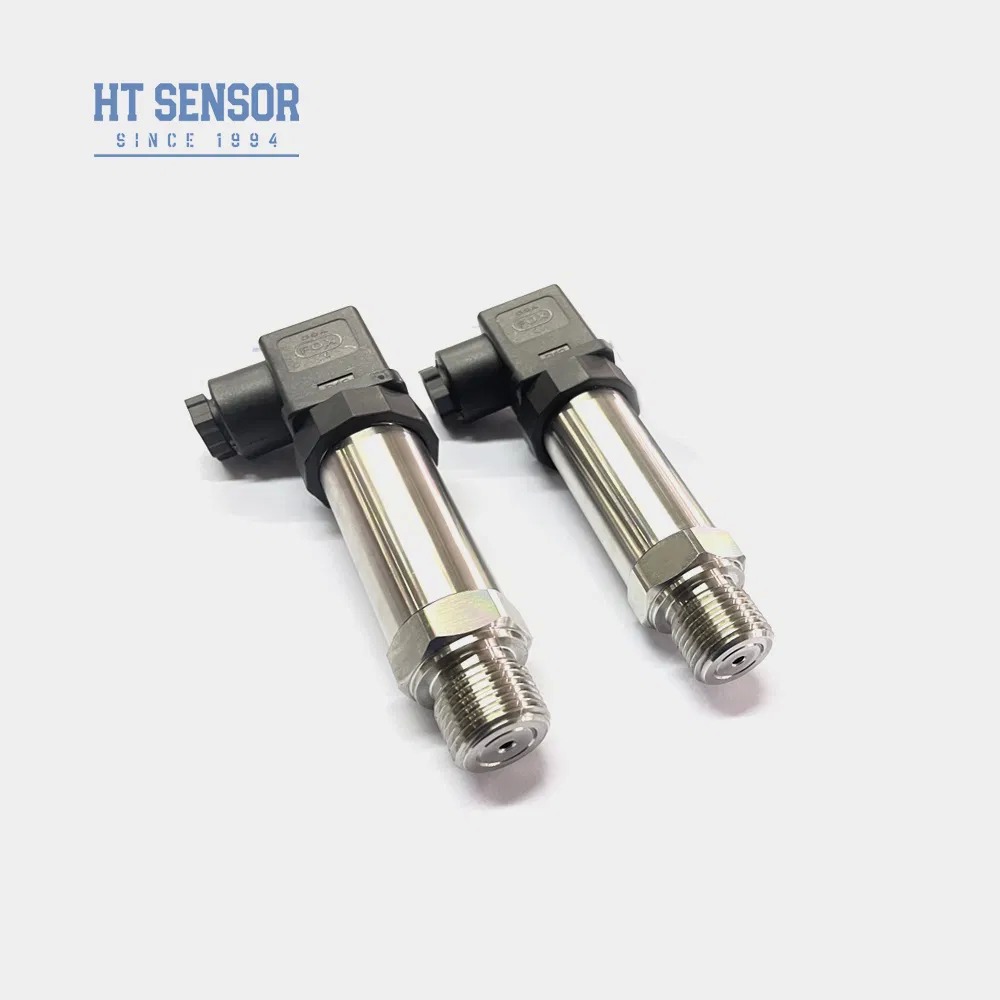

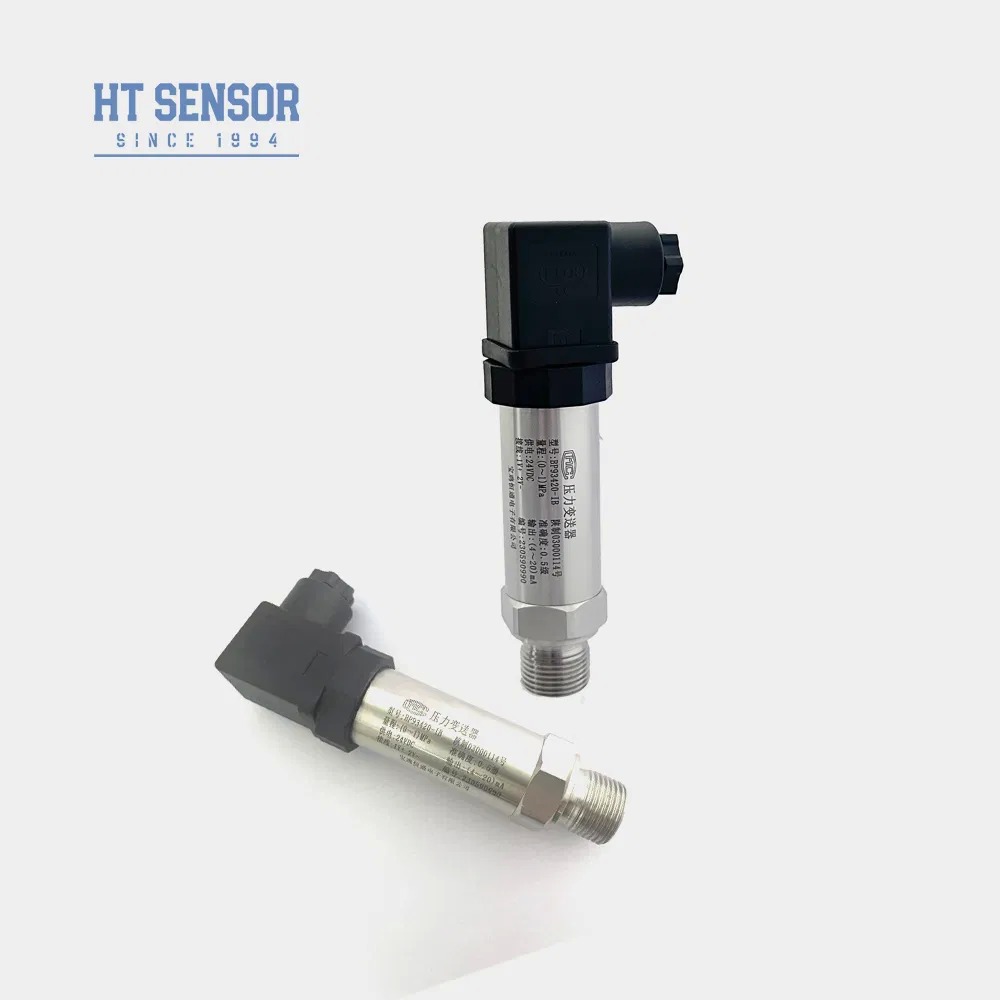

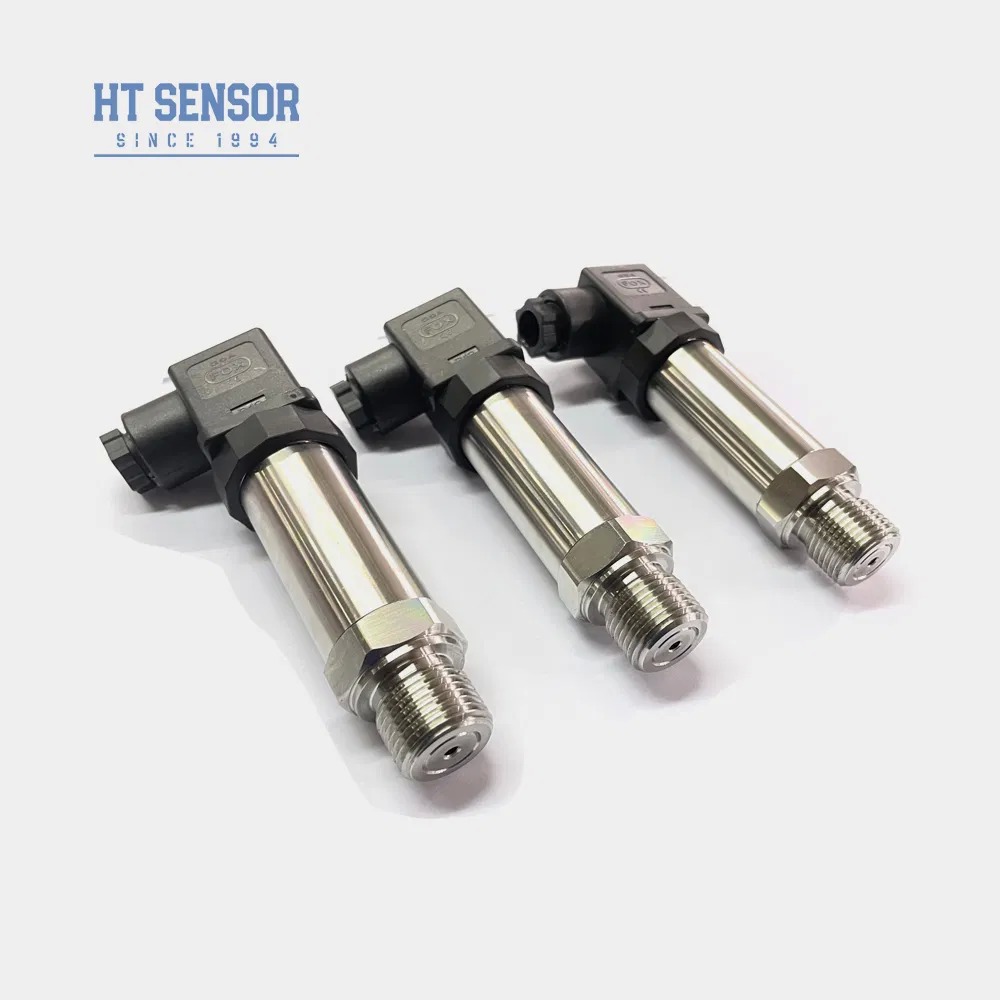

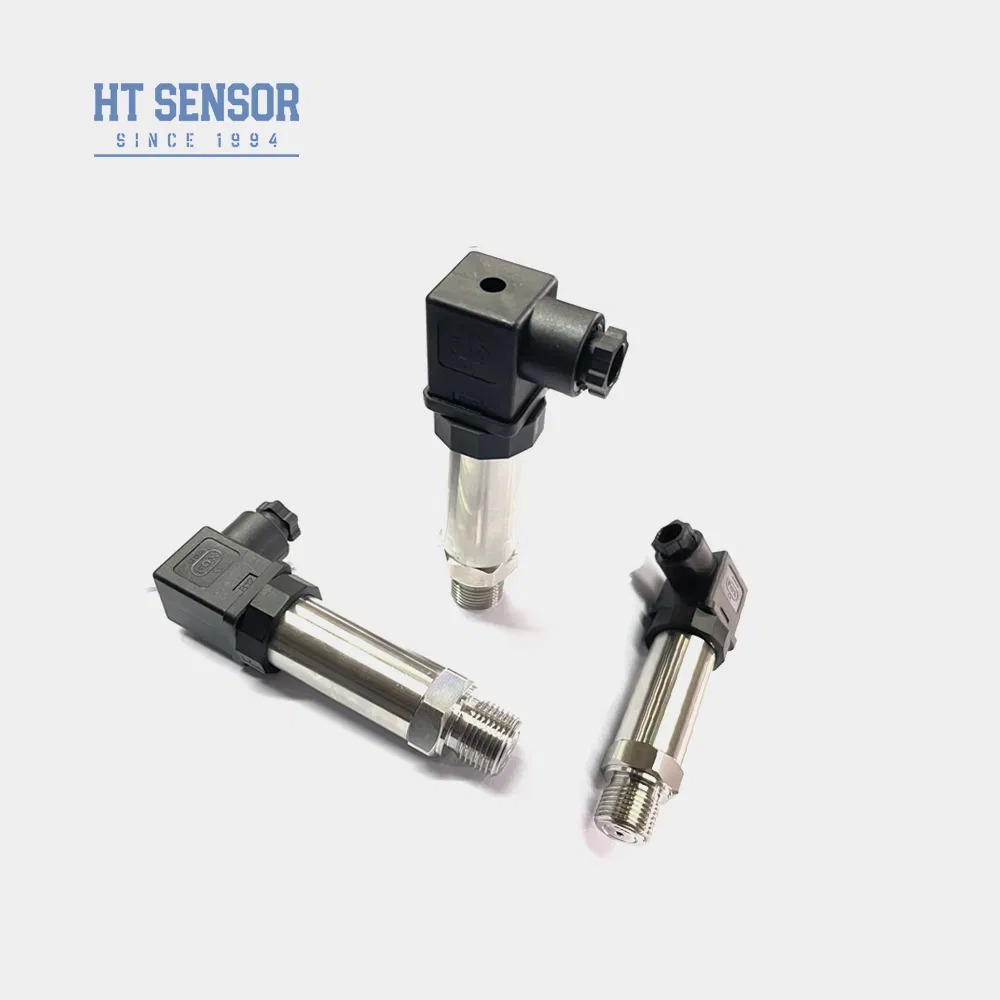

4-20mA 316L Stainless Steel IP65 Pressure Transmitter Level Sensor for Liquid Measurement
Product Details
| Model NO.: | BP93420-IB | Measuring Medium: | Liquid |
|---|---|---|---|
| Accuracy Grade: | 0.5G | Pressure Range: | 0kpa~10kpa...100MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316L | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
| Diaphragm Material: | 316L | Insulation Resistance: | 100MΩ 100VDC |
| Explosion-proof Rating: | Ex Db IIC T6 Gb | O-Ring Seal: | Fluoro Rubber |
| Weight: | ~0.15kg | Output Signal: | 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V |
| Operating Temperature: | -20ºC~80ºC | ||
| Highlight |
4-20mA Pressure Transmitter,316L Stainless Steel Level Sensor,IP65 Pressure Transducer |
||
Product Description
- Wide measuring range with stainless steel construction
- Multiple pressure interface configurations available
- Compact, lightweight design for easy installation
- Adjustable zero and full-scale calibration
- High precision measurement with all-stainless steel structure
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial process control in petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 1.5 times rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year (Typical) ±0.2%F.S/Year (Maximum) |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-70ºC(≤10MPa, customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration Resistance | 10g, 55Hz ~ 2kHz |
| Housing Material | 304, 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.15kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
- Verify medium compatibility with product contact materials
- Explosion-proof models exclude digital display heads
- Transmitters with LCD/LED display require ≥20VDC power supply
- Install lightning protection devices and ensure proper grounding
- Fluoro rubber O-ring rated for -20ºC to 250ºC; specify EPDM for temperatures below -20ºC
- Default 1.5m polyethylene cable; specify alternative materials if required
- Notify for special conditions: strong vibration, impact forces, electromagnetic/RF interference
| Code | Outline Construction |
|---|---|
| IB | General Pressure Transmitter |

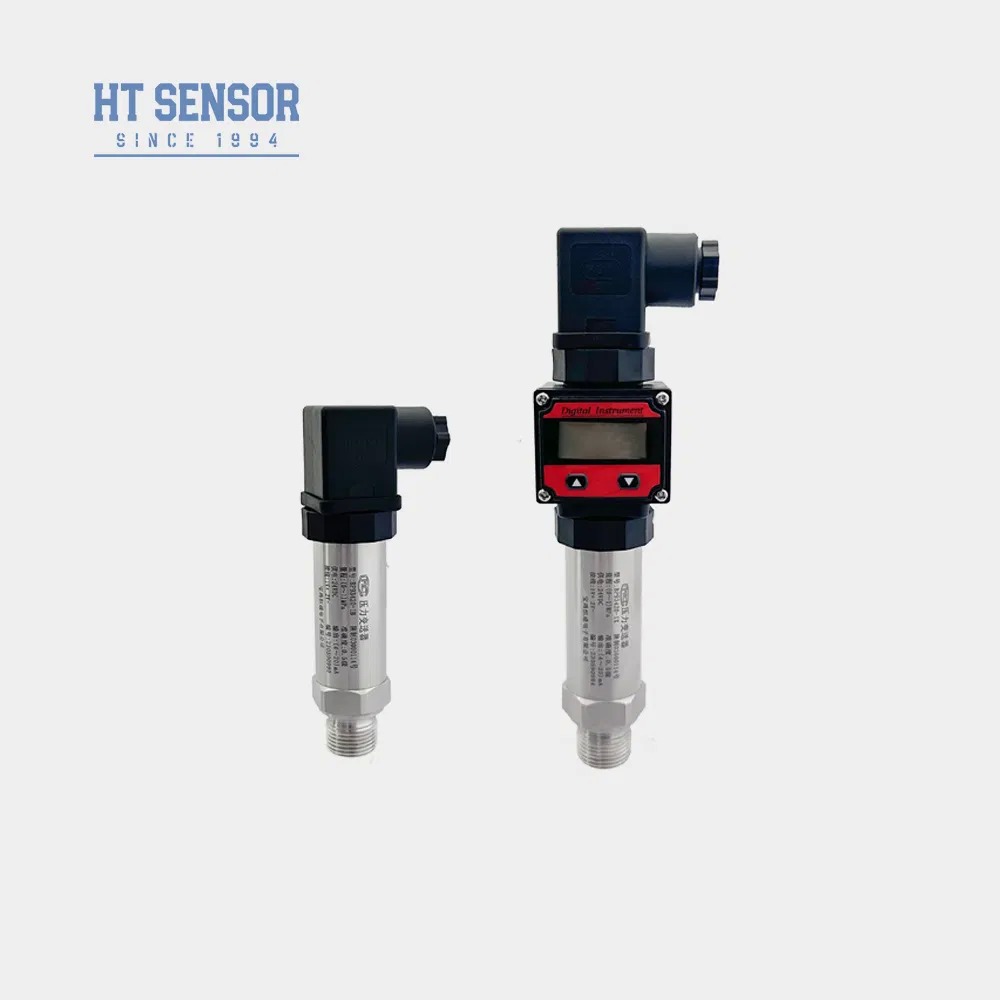

| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| IIC/III | Industrial General/Display Pressure Transmitter |
| IF | Moisture-proof Pressure Transmitter |
| IIE/IIIE | General/Display Pressure Transmitter |
| IN | Air Conditioning Dedicated Pressure Transmitter |
| IC | High-temperature Pressure Transmitter |
| IQ1/IQ2 | Large Diaphragm/High-temperature Pressure Transmitter |
| Category | Code | Description |
|---|---|---|
| Measurement Range | -0.1...0~0.01...100MPa | Various ranges available |
| (0-X)Kpa or MPa | X indicates actual measuring range | |
| Power Supply | D1 | 24VDC |
| D2 | 5VDC | |
| D3 | Other | |
| Output Signal | S1 | 4~20mADC |
| S2 | 1~5VDC | |
| S3 | 0~5VDC | |
| S4 | 0~10mADC | |
| S5 | 0~20mADC | |
| S6 | 0~10VDC | |
| S7 | 0.5~4.5VDC | |
| Pressure Connection | J1 | M20×1.5 |
| J2 | G1/2 | |
| J3 | G1/4 | |
| J4 | 7/16-20UNF | |
| J5 | Other | |
| Electrical Connection | B1 | Hirschmann |
| B2 | PG7 Plug | |
| B3 | Sealed Cable Output | |
| B4 | 2088 Industrial Casing | |
| B5 | 2088 Industrial Casing with Display | |
| B6 | Other | |
| Pressure Type | G | Gauge Pressure |
| A | Absolute Pressure | |
| S | Sealed Reference Pressure | |
Product Highlights
BP93420-IB 4-20mA pressure transmitter offers 0.5% accuracy, IP65 protection, and 316L stainless steel construction. Features ±0.2%F.S/year stability, wide pressure ranges, and customizable options for industrial liquid measurement applications.
