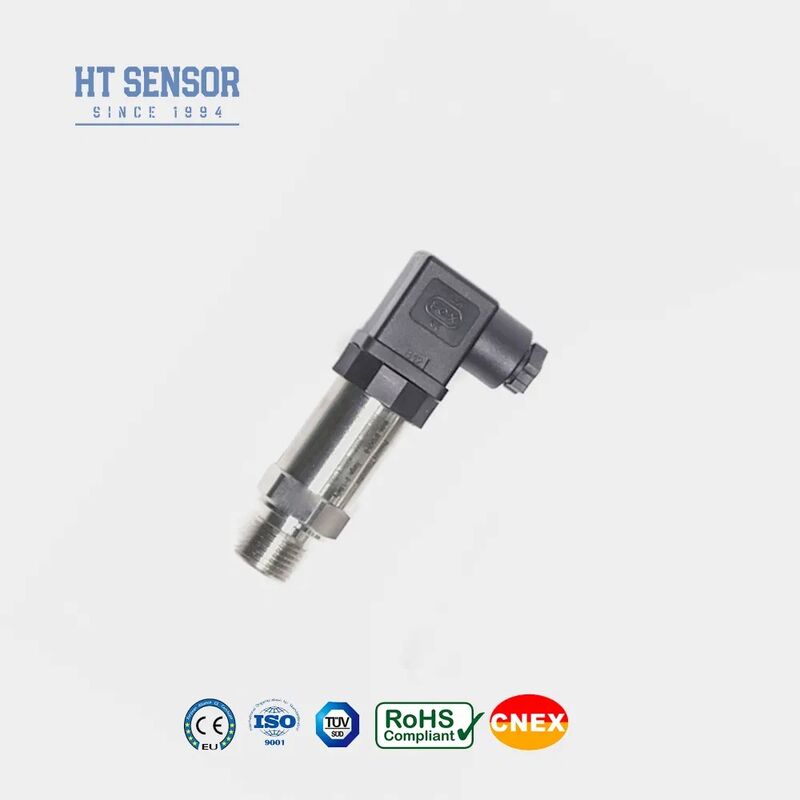

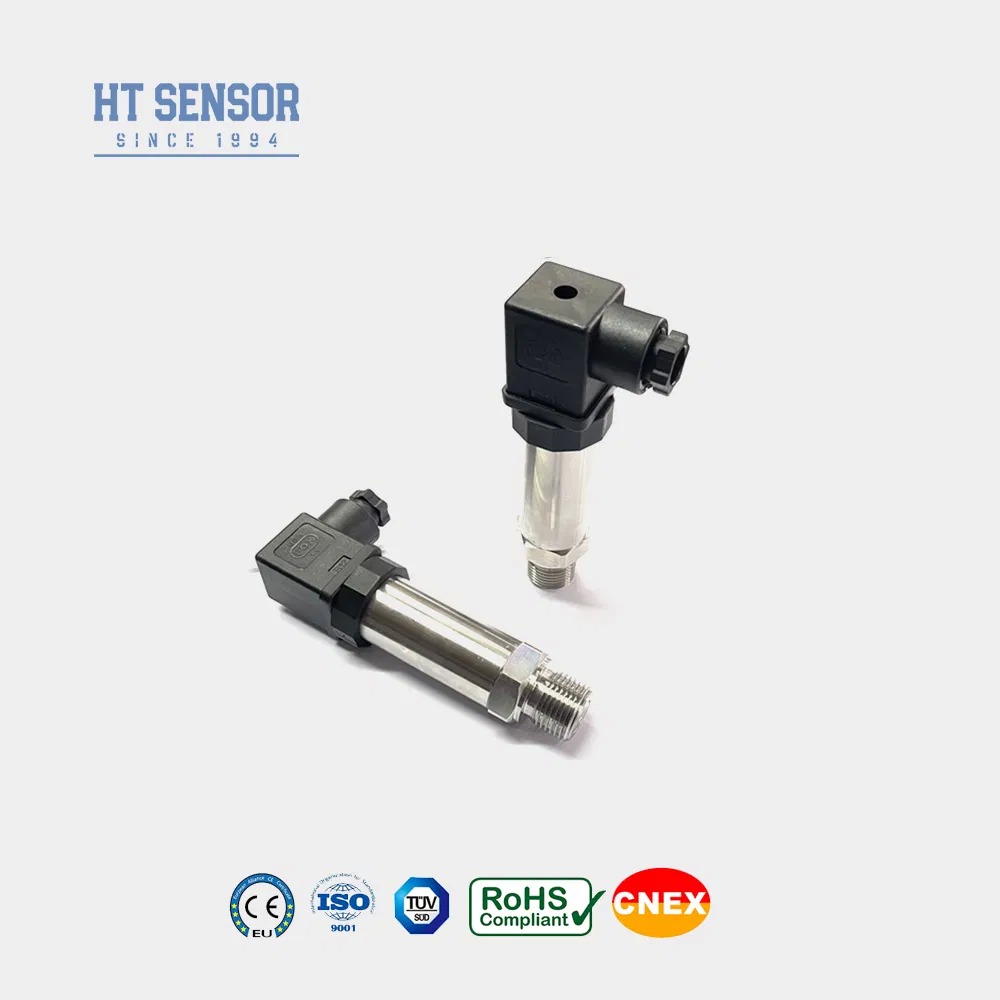

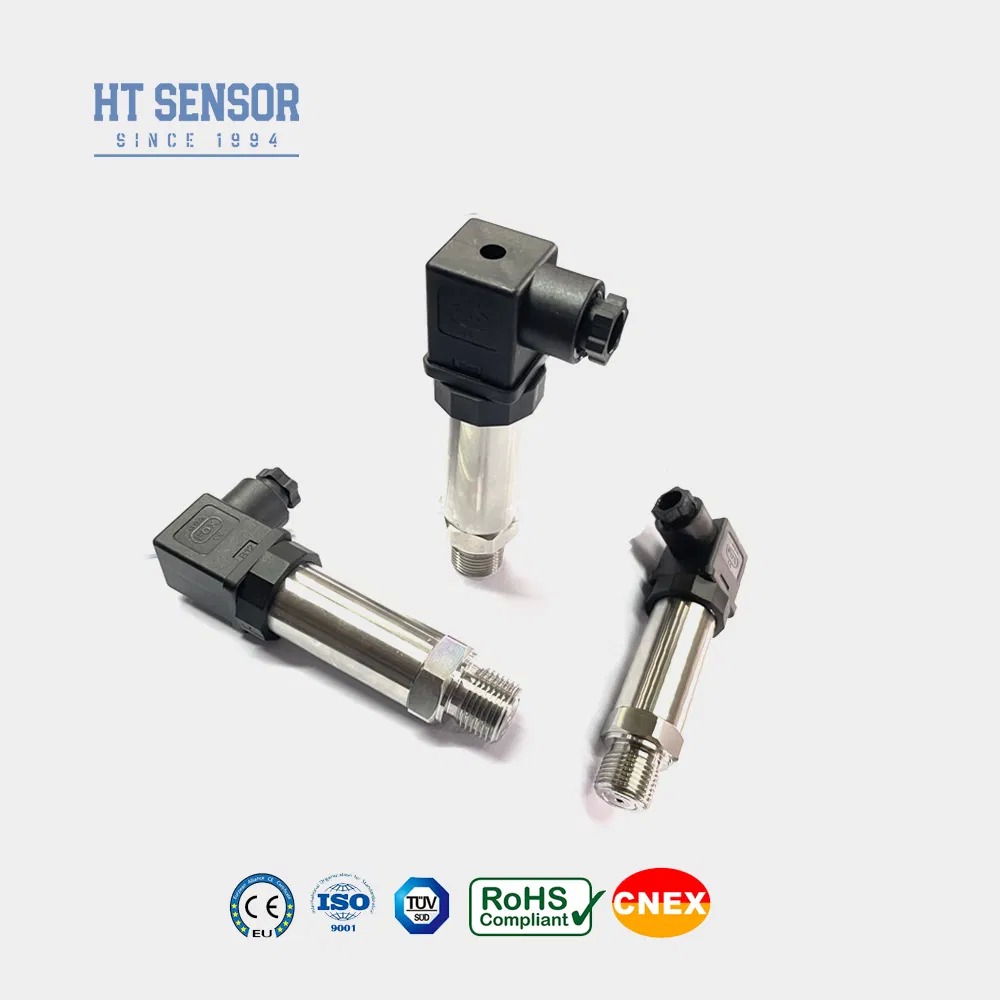

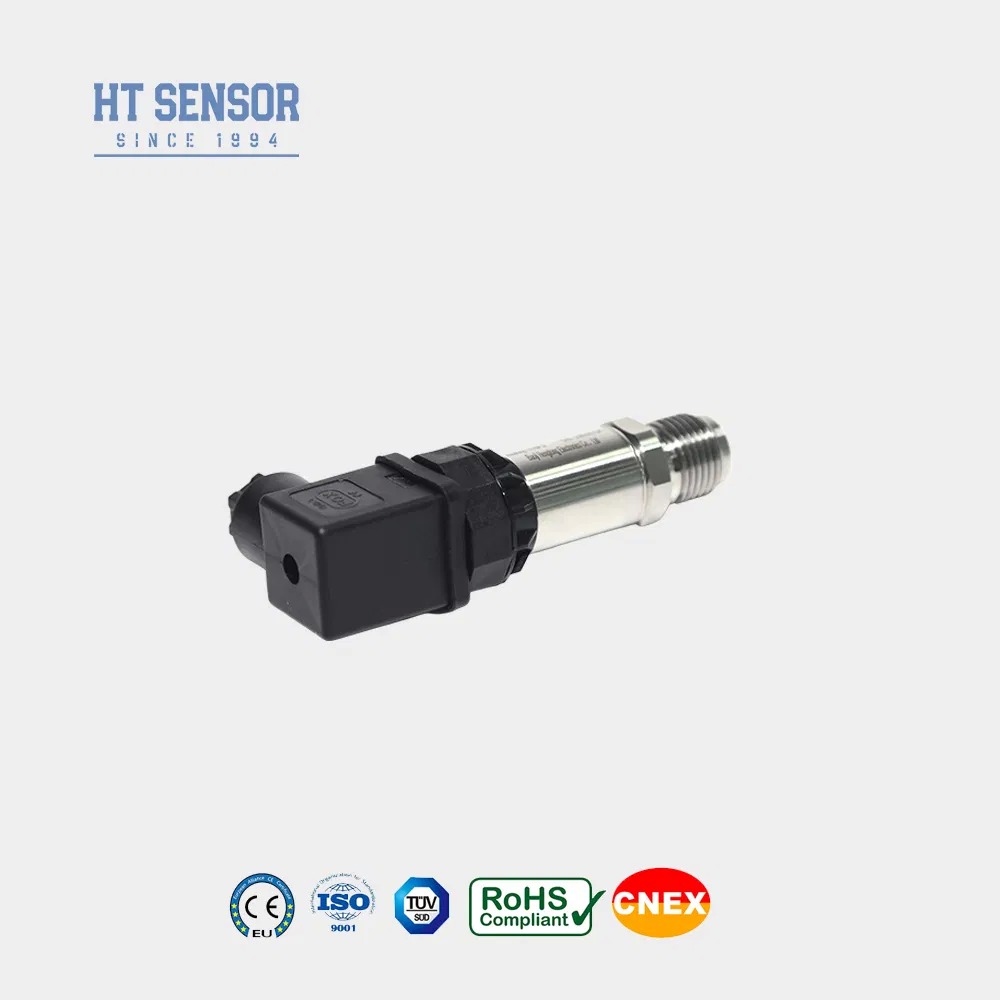

IP65 4-20mA 316L Stainless Steel Pressure Transmitter and Level Sensor for Industrial Applications
Product Details
| Model NO.: | BP93420-IB | Measuring Medium: | Liquid |
|---|---|---|---|
| Accuracy Grade: | 0.5G | Pressure Range: | 0kpa~10kpa...100MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316L | Long-Term Stability: | +-0.2%F.S/Year(Typ.) |
| Measurement Range: | -100kPa…0kPa ~ 10kPa…100MPa | Overload: | ≤ 1.5 Times Of The Rated Range |
| Accuracy @ 25ºC: | ±0.25% (Typical) ±0.5% (Maximum) | Repeatability: | 0.1%FS |
| Hysteresis: | 0.1%FS | Operating Temperature: | -20ºC~80ºC |
| Output Signal: | 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V | ||
| Highlight |
IP65 Pressure Transmitter,4-20mA Level Sensor,316L Stainless Steel Pressure Transducer |
||
Product Description
- Wide measuring range with stainless steel construction
- Multiple pressure interface configurations available
- Compact and lightweight design
- Adjustable zero and full-scale calibration
- High precision with all-stainless steel structure
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.15kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
- Ensure medium compatibility with product contact parts
- Explosion-proof models do not include digital display heads
- Transmitters with LCD/LED display require power supply ≥20VDC
- Install lightning protection devices and ensure proper grounding
- Fluoro rubber O-ring rated for -20ºC to 250ºC
- For temperatures below -20ºC, specify EPDM O-ring seal
- Default cable length: 1.5m (polyethylene material)
- Specify special requirements: vibration, impact, EMI/RFI interference
| Code | Outline Construction

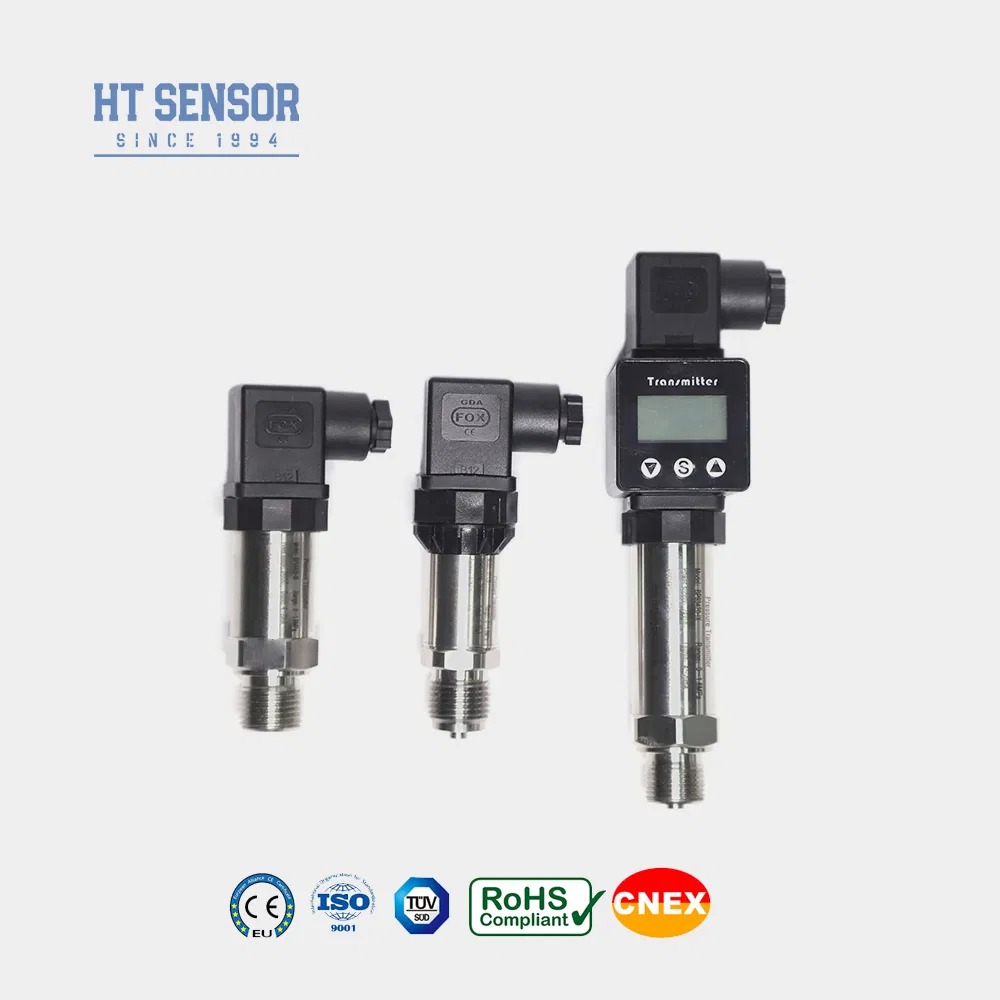

IB | General Pressure Transmitter | IX | Display Pressure Transmitter
IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter
IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter
IN | Air Conditioning Dedicated Pressure Transmitter | |
IC | High-temperature Pressure Transmitter | |
IQ1/IQ2 | Large Diaphragm /High-temperature Pressure Transmitter | |
| Measurement Range | -0.1. . .0~0.01...100MPa
(0-X)Kpa or MPa | X: Indicates the Actual Measuring Range
| Code | Power Supply
D1 | 24VDC
D2 | 5VDC
D3 | Other
| Code | Output Signal
S1 | 4~20mADC | S5 | 0~20mADC
S2 | 1~5VDC | S6 | 0~10VDC
S3 | 0~5VDC | S7 | 0.5~4.5VDC
S4 | 0~10mADC | |
| Code | Pressure Connection
J1 | M20×1.5
J2 | G1/2
J3 | G1/4
J4 | 7/16-20UNF
J5 | Other
| Code | Electrical Connection
B1 | Hirschmann
B2 | PG7 Plug
B3 | Sealed Cable Output
B4 | 2088 Industrial Casing
B5 | 2088 Industrial Casing with Display
B6 | Other
| Code | Pressure Type
G | Gauge Pressure
A | Absolute Pressure
S | Sealed Reference Pressure
Product Highlights
IP65-rated 4-20mA pressure transmitter with 316L stainless steel construction, ±0.5% accuracy, and long-term stability of ±0.2%F.S/year. ISO9001 certified with custom options available for industrial liquid pressure measurement applications.
