Detail Information

Model NO.:	BPK-III	Measuring Range:	Medium-pressure Gauge
Accuracy:	1	Display Type:	Digital
Power Supply:	AC85-260V	LED Display:	-1999-9999
Switch Points:	2point	Own Power Supply:	24VDC
Supply Voltage:	220VAC /24VDC(±10%)	Ambient Temperature:	0~50ºC
Relative Humidity:	≤85% Non Corrosive Gas	Input Impedance:	100K
Analog Output:	4~20 MA Or 0~20mA	Relay Contact Capacity:	250V/120V AC, 120V/48V AC, <48V AC
Relay Life:	>100000 Times
Highlight:	AC85-260V pressure gauge , multiple-signal input pressure gauge , silicon pressure sensor gauge

Product Description

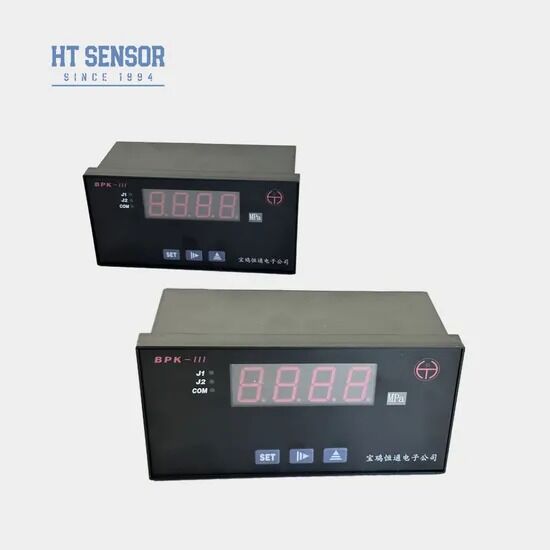

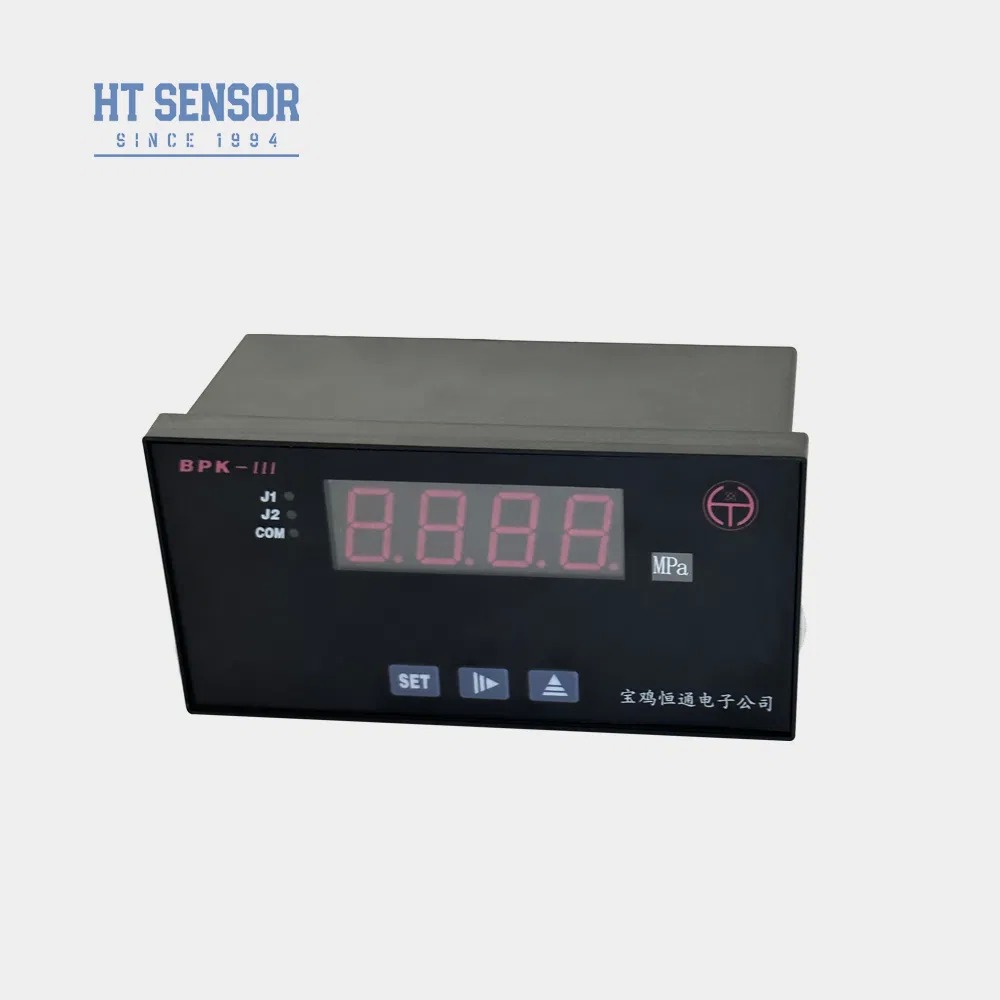

AC85-260V Multiple-Signal Input Integration Display Gauge Pressure Gauge

Multiple-signal input integration display gauge

BPK-III Pressure Gauge/Switch

Product Overview

BPK-III series controllers feature display, control, and transmission functions, and have been widely applied in various automatic control fields.

Key Features

Multiple RTD, thermocouple, or standard input signal options available
Display scope calibration for nonlinear signals and setting capability for linear signals
Isolated transmitting output with 12-bit resolution and configurable scope
Two relay outputs configurable for high/low, high/high-high, or low/low-low alarm action types

Technical Specifications

Supply Voltage: 220VAC / 24VDC (±10%)

Ambient Temperature: 0~50ºC

Relative Humidity: ≤85% Non-corrosive gas environment

Input Signal Parameters

Input Signal Code	Input Signal	Display Scope	Resolution	Precision	Input Impedance
00	T TC	0~400ºC	1ºC	0.2%	100K
01	R TC	0~1600ºC	1ºC	0.2%	100K
02	J TC	0~1200ºC	1ºC	0.2%	100K
03	WRe3-WRe25 TC	0~2300ºC	1ºC	0.2%	100K
04	B TC	350~1800ºC	1ºC	0.2%	100K
05	S TC	0~1600ºC	1ºC	0.2%	100K
06	K TC	0~1300ºC	1ºC	0.2%	100K
07	E TC	0~900ºC	1ºC	0.2%	100K
08	Pt100 RTD	-200.~600.0ºC	0.1ºC	0.2%	0.2mA
09	Cu50 RTD	-50.0~150.0ºC	0.1ºC	0.2%	0.2mA
10	0~375Ω remote pressure	Configurable from -1999 to 9999	16bit A/D sample	0.2%	0.2mA
11	0~75mV current divider			0.1%	100K
12	0~30mV			0.1%	100K
13	0~5V standard signal			0.1%	100K
14	1~5V standard signal			0.1%	100K
15	0~10V standard signal			0.1%	100K
16	0~10 mA standard signal			0.1%	20Ω
17	0~20 mA standard signal			0.1%	20Ω
18	4~20 mA standard signal			0.1%	20Ω

Analog Current Output Parameters

Transmitting Output Signal	Current Output	Transmitting Scope	Isolated Voltage	Max Resolution	Precision	Load Capacity	Open-circuit Voltage
00	4~20 mA	Transmit data within scope to standard current signal	1500V	12bits	0.3%	≤500Ω	15V
01	0~20mA

This product is manufactured with either 4~20 mA or 0~20mA output current signals. For voltage output requirements, users can request customization from the manufacturer or connect with 250 or 500 ohm resistors for 1~5V, 0~5V, or 0~10V voltage output (Note: resistor precision directly affects transmission output voltage accuracy).

Relay Output Contact Capacity

Voltage	Max Current (Resistive Load)	Max Current (Inductive Load)	Relay Life
250V/120V	3A AC / 2A DC	0.3A AC / 0.2A DC	>100,000 operations
120V/48V	4A AC / 3A DC	0.4A AC / 0.3A DC
<48V	5A AC / 4A DC	0.5A AC / 0.4A DC

Additional Features

External DC24V/30mA power supply capability for transmitters
Automatic temperature compensation function for thermocouple sensors
Disconnection protection function

Model Dimensions

Model	Outline Dimension	Panel Output Dimension (mm)	Notes
BPK-IIIS1	160×80×80 (Horizontal)	152+0.8×76+0.7
BPK-IIIS2	96×48×112 (Horizontal)	92+0.7×44+0.5

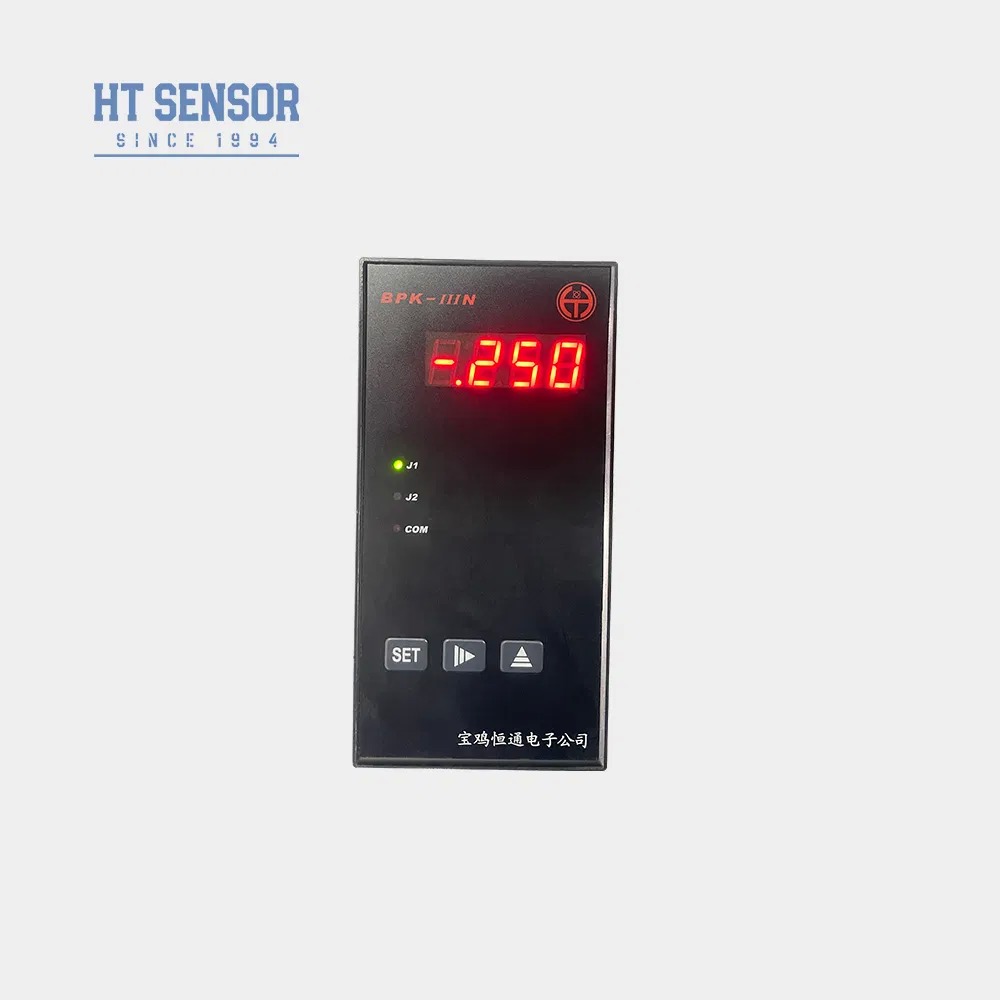

BPK-IIIN1	80×160×80 (Vertical)	76+0.7×152+0.8
BPK-IIIN2	48×96×112 (Vertical)	44+0.5×92+0.7
BPK-IIIF1	96×96×112 (Square)	92+0.7×92+0.7
BPK-IIIF2	48×48×108 (Square)	44+0.5×44+0.5	With J2 alarm lamp without J2 relay
BPK-IIIF3	72×72×112	67+0.7×67+0.7

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.

What's the typical delivery period?

5~8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?

Our warranty period is 24 months after shipment, and our after-sales team will respond to your questions within 24 hours. Remote instruction via PC network is always available.
