Detail Information

Model NO.:	BT93420-II	Output Signal:	Analog Type
Production Process:	Normal Wirewound	Material:	Stainless Steel
Measuring Medium:	Temperature	IP Rating:	IP65
Sensitive Original:	PT100	Temperature Range:	-55~200
Output:	4-20mA	Measurement Range:	-55~1200ºC
Accuracy:	±0.5% (Typ.) ±1% (Max.)	Repeatability:	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis:	±0.03% (Typ.) ±0.05%FS (Max.)	Long-Term Stability:	±0.2%F.S/year (Max.)
Weight:	~0.5Kg
Highlight:	IP68 PT100 temperature transmitter , industrial PT1000 temperature sensor , OEM digital temperature transmitter

Product Description

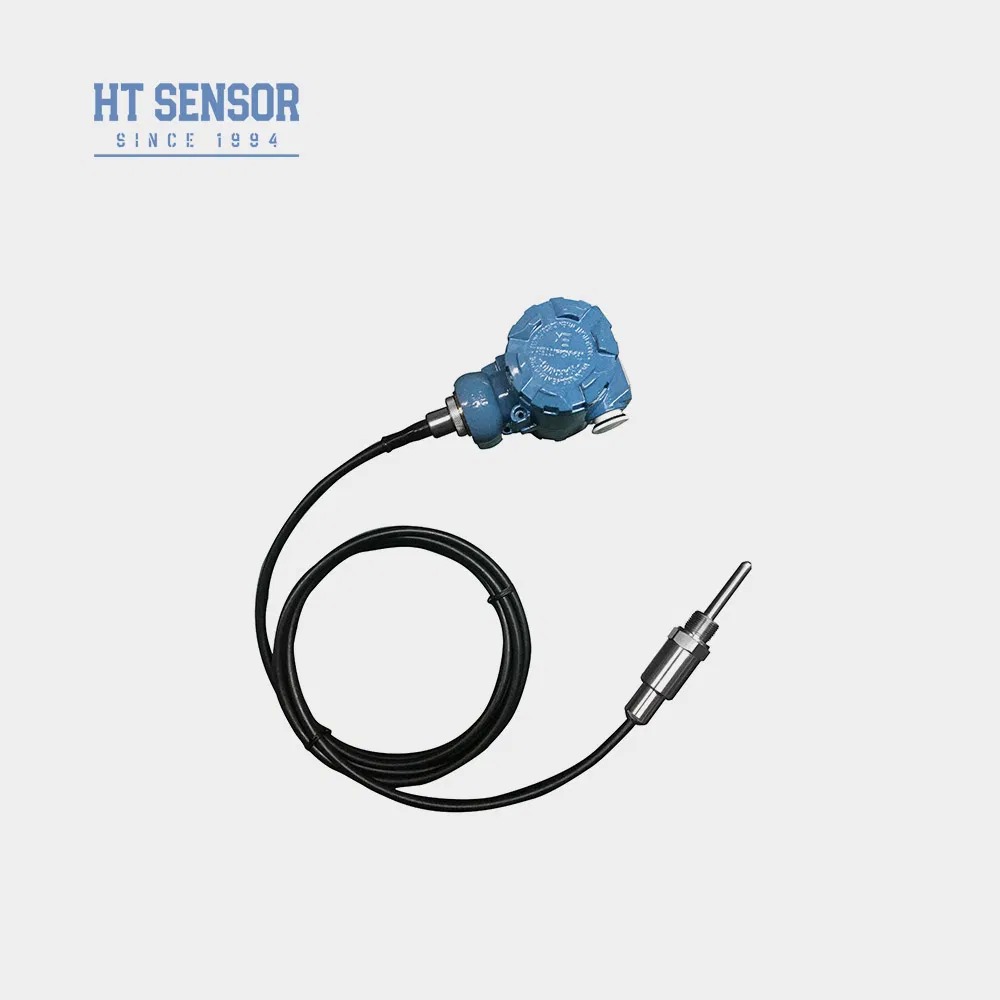

IP68 OEM Digital Pt100 Temperature Transmitter PT1000 Temperature Sensor Industrial

IP68 Put-in temperature transmitter input to the liquid

BT93420 Temperature Indicator Transmitter

Introduction

The BT93420 temperature indicator transmitter utilizes a dedicated temperature module that performs linear correction on various types of thermocouples and resistance temperature detectors (RTDs), outputting standard analog signals. This device offers high accuracy, excellent stability, strong anti-interference capability, water resistance, explosion-proof design, high temperature resistance, and shock resistance. It integrates seamlessly with control systems to enable automated temperature control and monitoring.

Product Features

Full stainless steel structure with excellent corrosion resistance
Available with analog output or digital output options

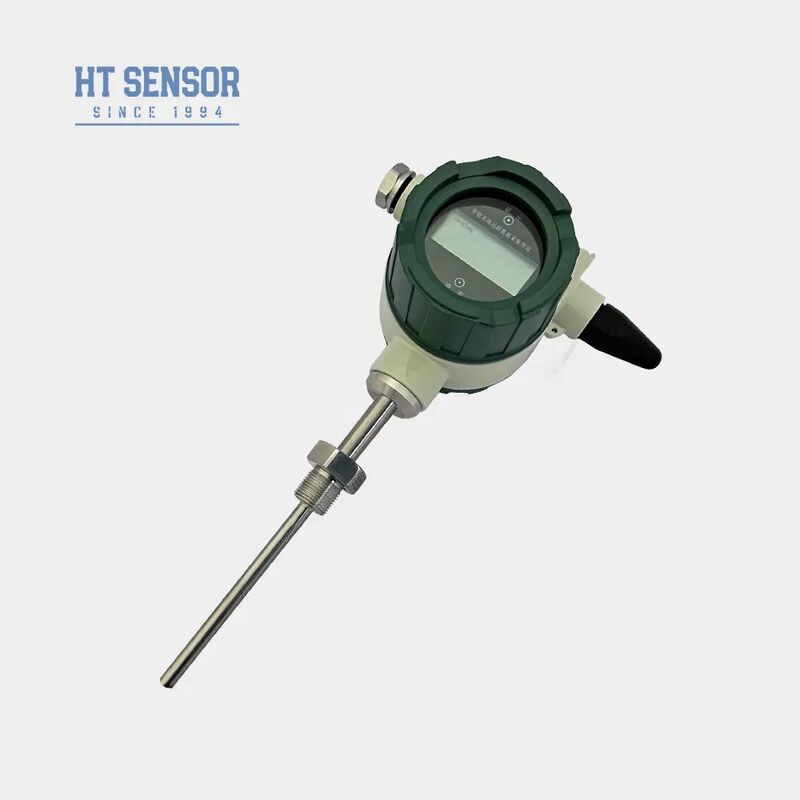

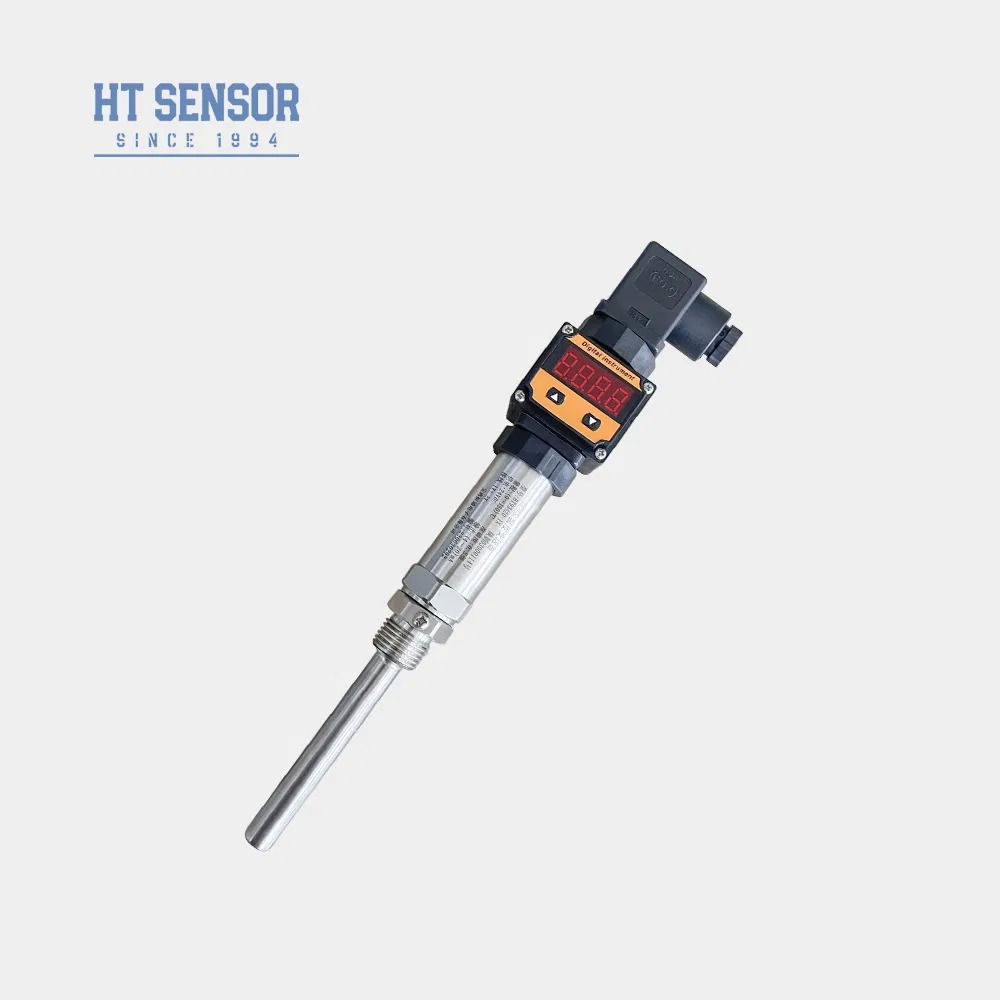

Multiple housing options: Terminal box, 2088 LCD, or LED display

Applications

Monitor temperature of generators, transformers, cables, and other critical equipment
Industrial automation systems
Temperature measurement of gases and liquids in pipelines across petroleum, chemical, power, and hydrology industries

Performance Parameters

Measurement Range	-55~1200ºC
Accuracy @ 25ºC	±0.5% (Typ.) ±1% (Max.)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.2%F.S/year (Max.)
Operating Temperature	-30~80ºC
Storage Temperature	-40~100ºC
Housing Material	1Cr18Ni9Ti
Diaphragm Material	316L Stainless Steel
Insulation Resistance	>=100MΩ@100VDC
Maximum Temperature	120% of the rated temperature range
Protection Rating	IP65
Weight	~0.5Kg

Outline Construction

Terminal Box

Order Guide

BT93420 Temperature Indicator Transmitter

Code	Outline Construction

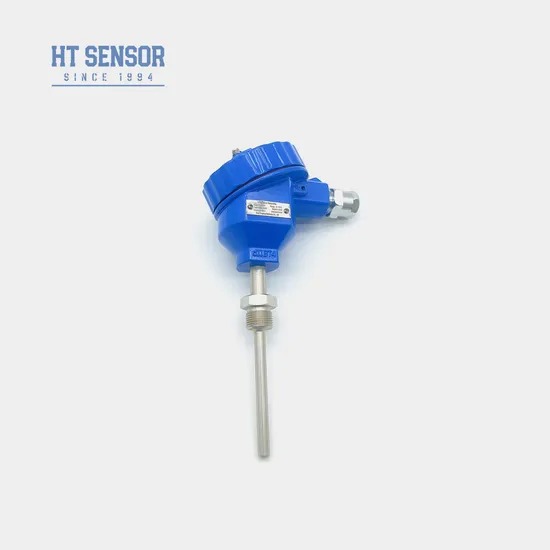

I	Blue Terminal Box

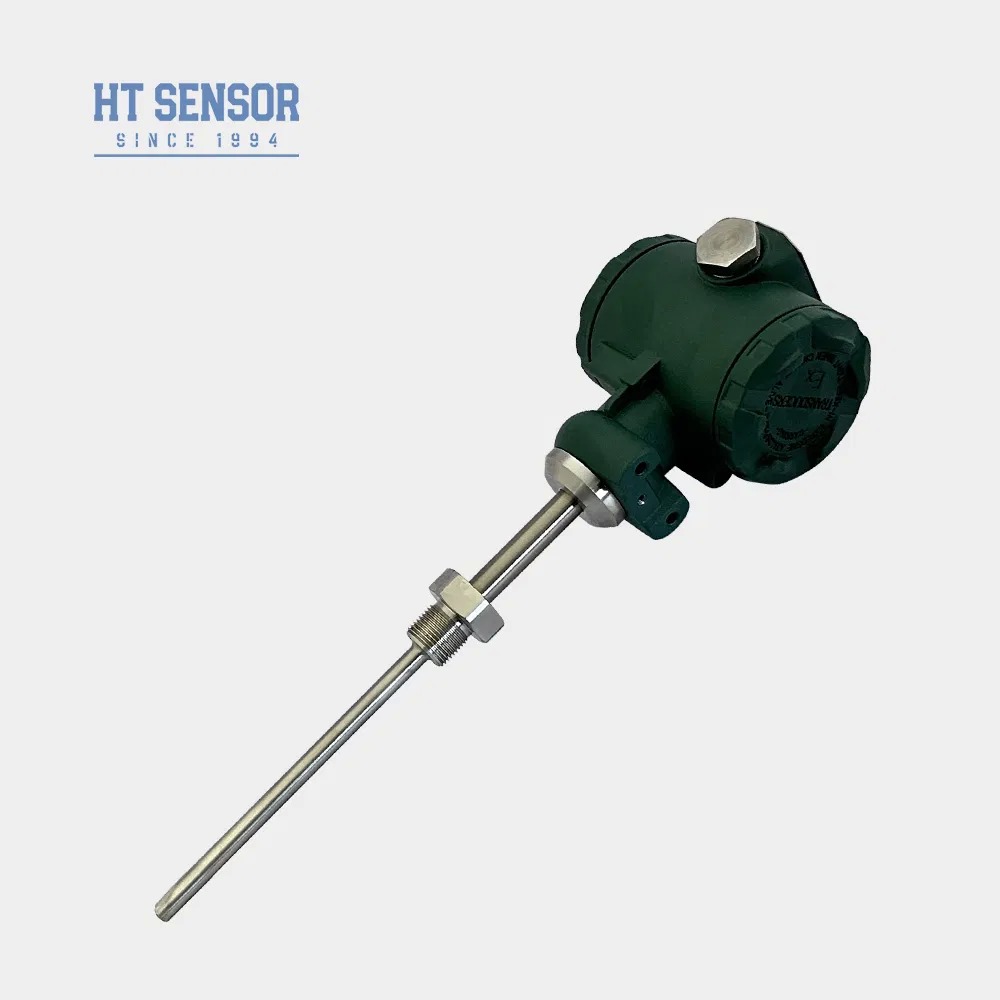

II	2088 housing
III	2088+LED
IIIA	3051+LED

Measurement Range: -55~1200ºC

Code	Power Supply
D1	24VDC
D2	Other

Code	Output Signal
S1	4~20mADC
S2	1~5VDC
S3	0~5VDC
S4	0~10mADC
S5	0~20mADC
S6	0~10VDC

Code	Pressure Connection
J1	M27X2 Male
J2	Other

Code	Insertion Depth
L	Actual insertion depth

Frequently Asked Questions

What are the features of your temperature sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 temperature sensor transmitters per month, ensuring we can meet large-scale order requirements. We recommend contacting our sales team in advance for smooth production and delivery scheduling.

What's the typical delivery period?

5-8 working days for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts available for bulk orders and long-term partnerships.

What is the warranty of your products? And after-sales service?

24-month warranty after shipment. Our after-sales team responds to inquiries within 24 hours, with remote PC network instruction always available.

Certification:	No

Minimum Order Quantity:	1
Price:	30
