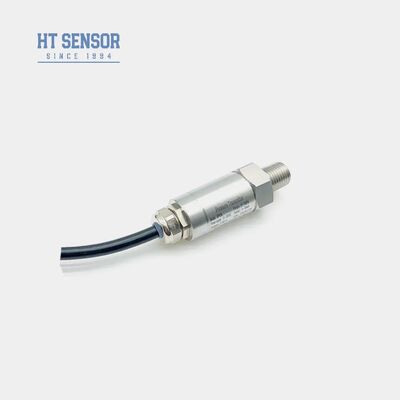

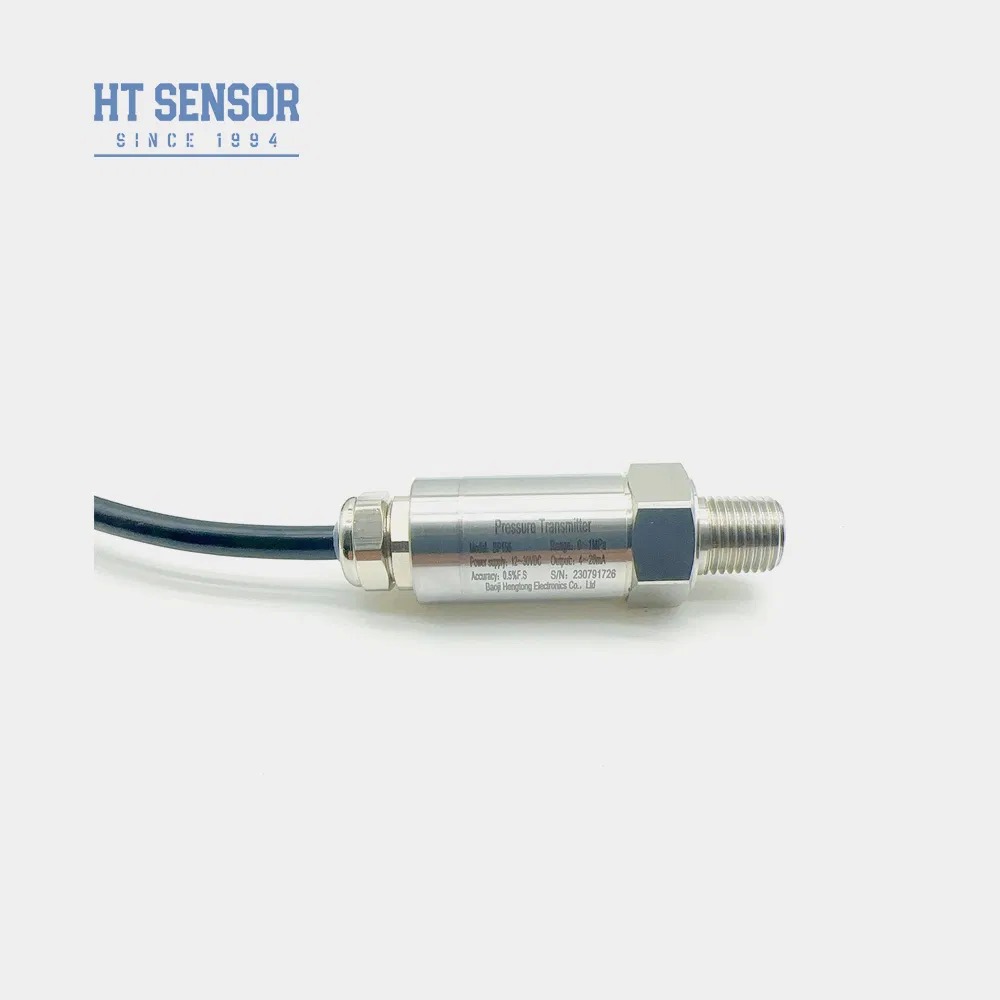

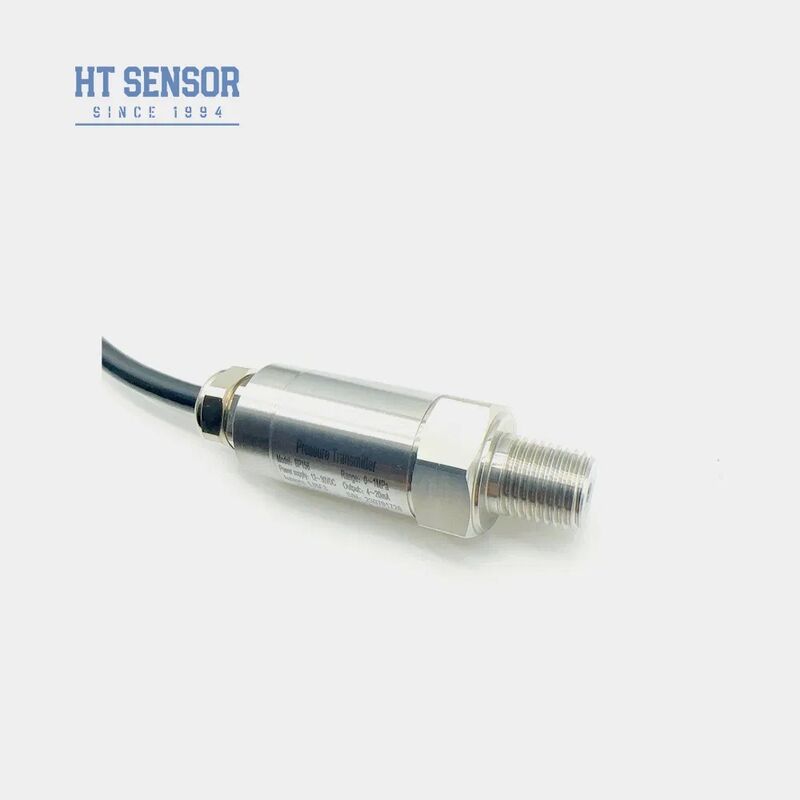

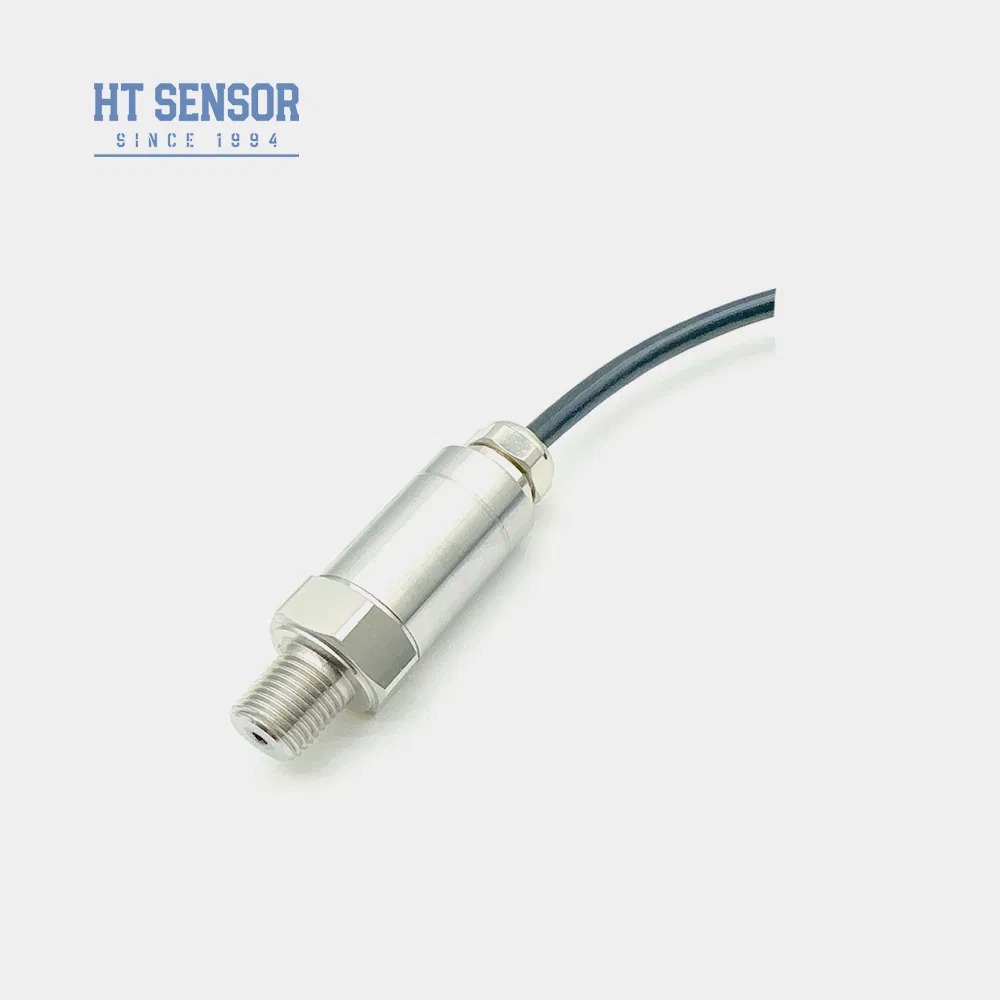

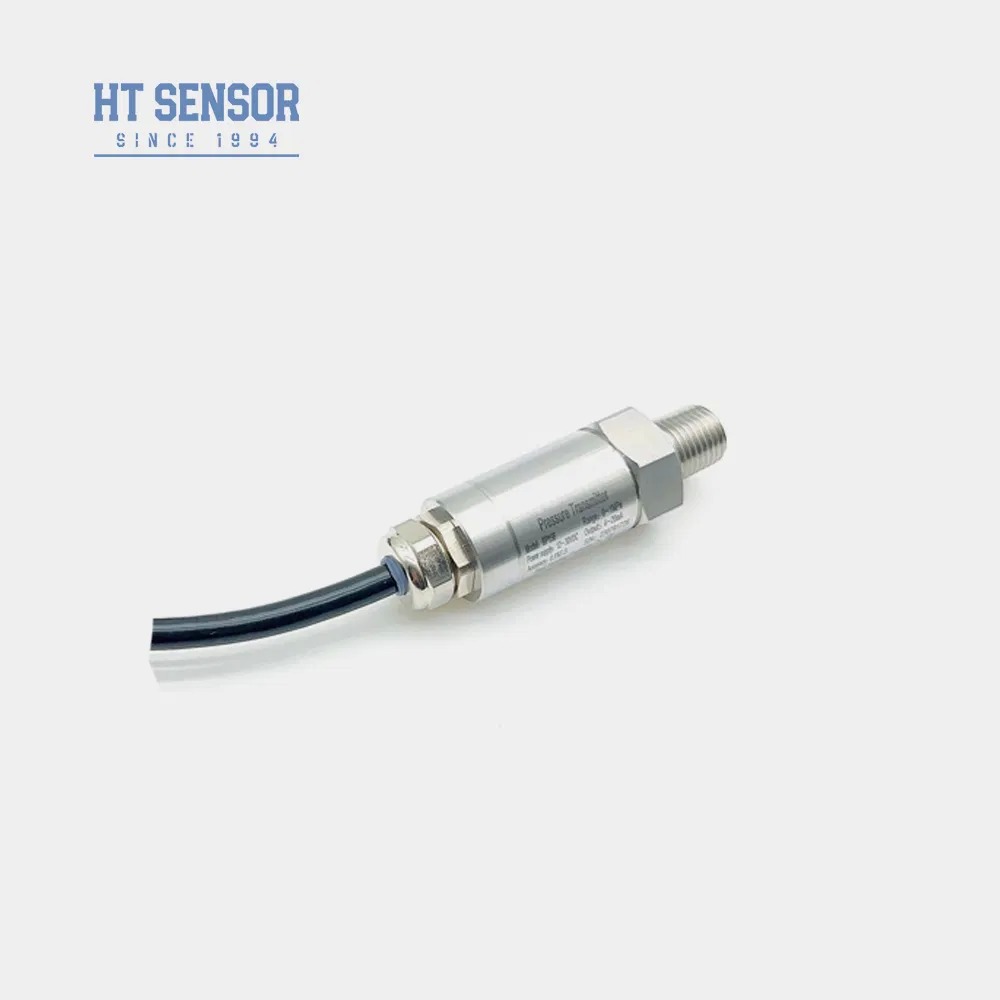

High Accuracy Silicon Pressure Transmitter Air Pressure Sensor Industrial with HT Sensor
Product Details
| Model NO.: | BP156 | Measuring Medium: | Gas And Liquid |
|---|---|---|---|
| Pressure Range: | 0kpa~10kpa...40MPa | IP Rating: | IP65 |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure | Operating Temp.: | -20℃~80℃ |
| Overload Capacity: | ≤ 1.5 Times Of The Rated Range | Accuracy @ 25ºC: | ±0.25% (Typ.) ±0.5% (Max.) |
| Long-Term Stability: | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) | Diaphragm Material: | 316L |
| Insulation Resistance: | 100MΩ 100VDC | Weight: | ~0.25kg |
| Highlight |
High accuracy silicon pressure sensor,Industrial air pressure transmitter,HT sensor pressure transmitter |
||
Product Description
- Wide measuring range with stainless steel construction
- Multiple pressure interface configurations available
- IP65 protection rating with all-stainless steel structure
- Zero and full-scale calibration capability
- High precision measurement accuracy
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | 0kPa ~ 10kPa…40MPa |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 1.5 times rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10MPa, customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration Resistance | 10g, 55Hz ~ 2kHz |
| Housing Material | 304, 316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
- Ensure the measured medium is compatible with product contact materials
- Explosion-proof models do not include digital display heads
- Transmitters with LCD or LED display require power supply ≥20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- For operating temperatures below -20ºC, select EPDM O-ring seals
- Default cable length is 1.5m (polyethylene material)
- Specify special requirements for vibration, impact, or electromagnetic interference

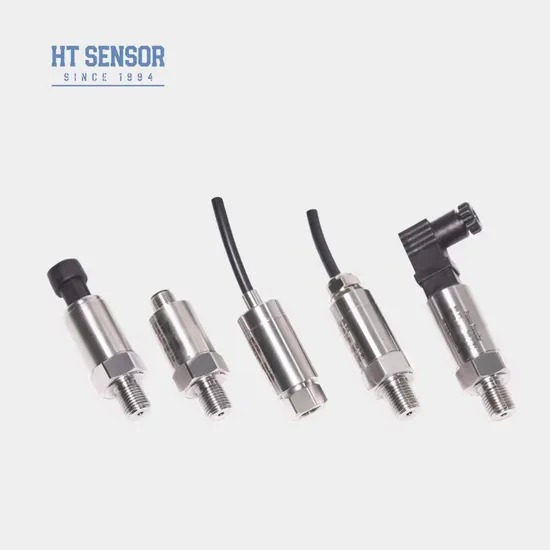

| BP15X | Analog Pressure Transmitter |
|---|---|
| Code | Outline Construction |
| 5 | Packard plug |
| 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector |
| 8 | Large Hirschmann Connector |
| Measurement Range | 0kPa ~ 10kPa…5MPa (0-X)Kpa or MPa | X: Actual Measuring Range |
| Code | Power Supply |
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| Code | Pressure Connection |
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |
| J5 | Others (¢50.4 Flange) |
| Code | Electrical Connection |
| B1 | Hirschmann |
| B2 | PG7 |
| B3 | Cable Sealed Outlet 1.5 meters |
| B4 | Other |
| Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
Product Highlights
BP156 High Accuracy Silicon Pressure Transmitter Product Overview The BP156 pressure transmitter utilizes HT series silicon pressure-resistant isolation membrane oil-filled core technology as the signal measuring element. The signal processing circuit is housed within a durable stainless steel ...
